LZ4-V0MD0C-0000
LED MOD LZ4 RGBW STARBRD 6335KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

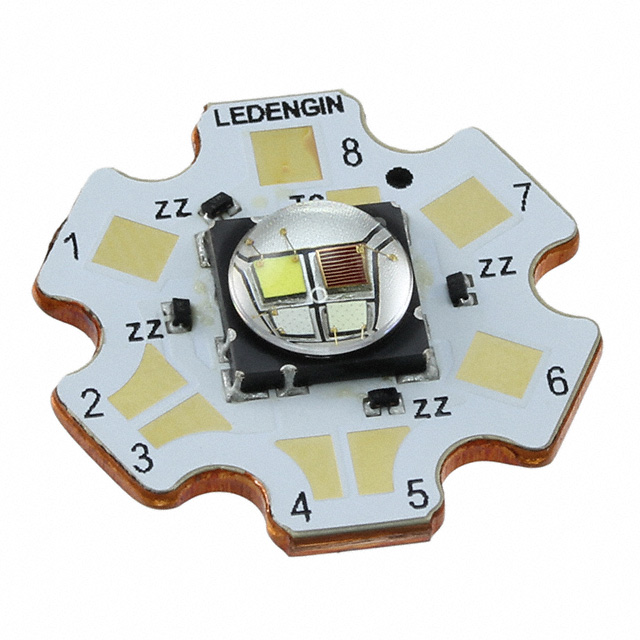

LED Lighting COBs Engines Modules LED Module LZ4 Red, Green, Blue, White - Cool Starboard
Additional Information
Series: LZ4RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | Red, Green, Blue, White - Cool |
| Wavelength | 624nm Red, 525nm Green, 457nm Blue |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White |
| Height | 5.40mm |
| Current - Test | 700mA Red, 700mA Green, 700mA Blue, 700mA White |
| Viewing Angle | 95° |
| Lens Type | Domed |
| Current - Max | 1A Red, 1A Green, 1A Blue, 1A White |
| Lumens/Watt @ Current - Test | 76 lm/W Red, 63 lm/W Green, 15 lm/W Blue, 104 lm/W White |
| CCT (K) | 6335K |
| CRI (Color Rendering Index) | 75 (Typ) |
| Light Emitting Surface (LES) | 6.50mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 133lm Red, 160lm Green, 33lm Blue, 234lm White |
