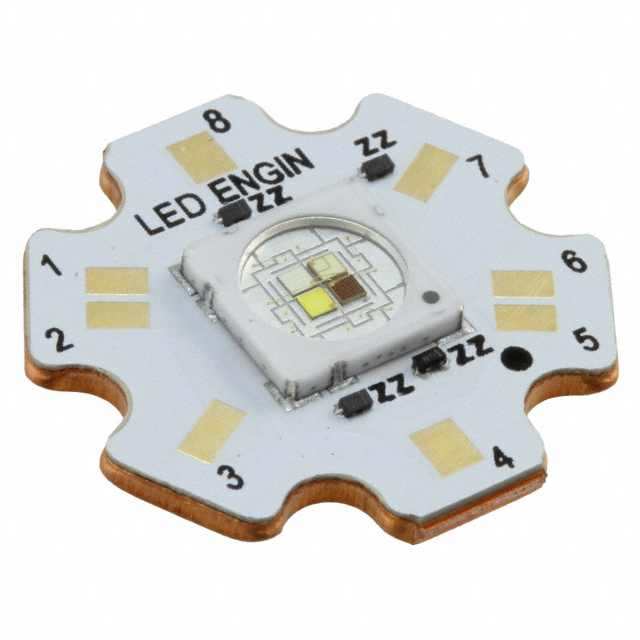

LZ4-64MDC9-0000
LED MOD LZ4 RGBW STARBRD 6500KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
ams-OSRAM USA INC. LZ4 series LED module, part number LZ4-64MDC9-0000, provides a compact 19.90mm diameter RGBW light source with a cool white (6500K) option. This module features individual forward voltage characteristics of 2.5V for Red, 3.6V for Green, 3.2V for Blue, and 3.2V for White, with a maximum recommended current of 1A. At a test current of 700mA and 25°C, luminous flux outputs are approximately 65lm (Red), 125lm (Green), 30lm (Blue), and 180lm (White), yielding efficiencies of 37 lm/W (Red), 50 lm/W (Green), 13 lm/W (Blue), and 80 lm/W (White). The module boasts a wide 110° viewing angle and is supplied in trays. This component is suitable for applications in general lighting, architectural lighting, and display technologies.
Additional Information
Series: LZ4RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | Red, Green, Blue, White - Cool (RGBW) |
| Wavelength | 623nm Red, 523nm Green, 460nm Blue |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White |
| Height | 2.80mm |
| Current - Test | 700mA |
| Viewing Angle | 110° |
| Lens Type | - |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | 37 lm/W Red, 50 lm/W Green, 13 lm/W Blue, 80 lm/W White |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 65lm (Typ) Red, 125lm (Typ) Green, 30lm (Typ) Blue, 180lm (Typ) White |
