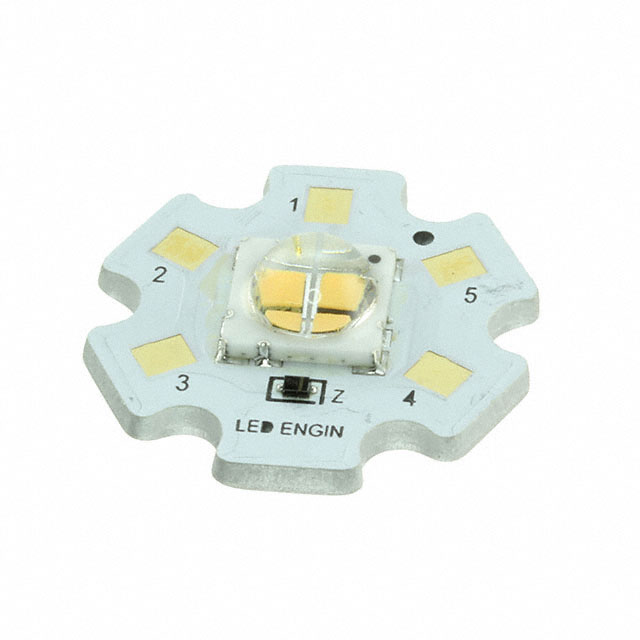

LZ4-40GW08-0027
LED MOD LZ4 WHT STARBOARD 2700KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
ams-OSRAM USA INC. LZ4 series LED Module, part number LZ4-40GW08-0027. This warm white LED module operates at a correlated color temperature of 2700K, specified within a 3-step MacAdam ellipse for tight color consistency. Featuring a high Color Rendering Index (CRI) of 98 typical, it delivers exceptional color accuracy. The module is designed for a maximum forward current of 1A, with typical performance at 700mA yielding 43 lm/W. At 700mA and 25°C, it produces a luminous flux of 401 lumens, with a range of 356lm to 445lm. The Light Emitting Surface (LES) has a diameter of 5.60mm, and the module itself measures 19.90mm in diameter with a height of 5.40mm. The viewing angle is 105°, and it utilizes a domed lens type. This component is suitable for applications requiring high-quality illumination, such as architectural lighting, retail displays, and automotive interior lighting. Packaged in trays.
Additional Information
Series: LZ4RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 13.2V |
| Height | 5.40mm |
| Current - Test | 700mA |
| Viewing Angle | 105° |
| Lens Type | Domed |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | 43 lm/W |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 98 (Typ) |
| Light Emitting Surface (LES) | 5.60mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 401lm (356lm ~ 445lm) |
