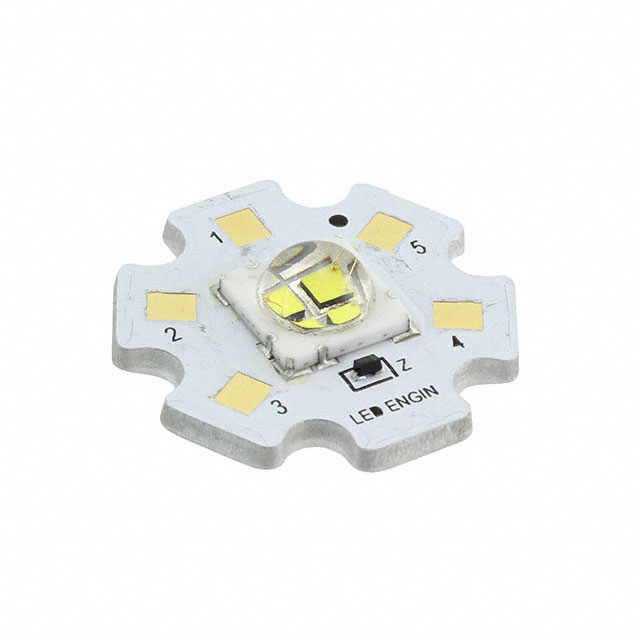

LZ4-40CW08-0000
LED MOD LZ4 WHT STARBOARD 6500KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The ams-OSRAM USA INC. LZ4 series LED module, part number LZ4-40CW08-0000, offers a cool white light with a typical Color Rendering Index of 75. This module operates with a forward voltage of 12.6V (typical) and can handle a maximum current of 1A, with a test current of 700mA yielding 91 lm/W. At the test conditions, it produces a luminous flux of 800 lumens. Featuring a 5.60mm diameter Light Emitting Surface (LES) within a 19.90mm diameter footprint and a height of 5.40mm, this module is designed with a flat lens and a 90° viewing angle. Its starboard configuration and 5000K to 6500K color temperature range make it suitable for various lighting applications, including general illumination and architectural lighting. This component is supplied in trays.
Additional Information
Series: LZ4RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 12.6V |
| Height | 5.40mm |
| Current - Test | 700mA |
| Viewing Angle | 90° |
| Lens Type | Flat |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | 91 lm/W |
| CCT (K) | 5000K ~ 6500K |
| CRI (Color Rendering Index) | 75 (Typ) |
| Light Emitting Surface (LES) | 5.60mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 800lm (695lm ~ 1085lm) |
