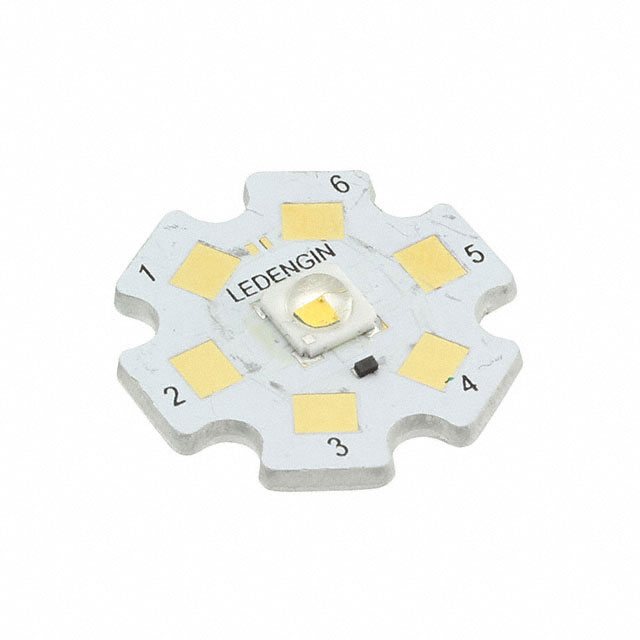

LZ1-10NW02-0040
LED MOD LZ1 WHT STARBOARD 4000KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The ams-OSRAM USA INC. LZ1 series LED module, part number LZ1-10NW02-0040, offers a neutral white illumination with a typical Correlated Color Temperature (CCT) of 4000K and a Color Rendering Index (CRI) of 82. This compact module features a 3.20mm diameter Light Emitting Surface (LES) and a domed lens type, providing an 85° viewing angle. Designed for efficient operation, it draws a maximum current of 1.2A with a typical forward voltage of 3.6V. At a test current of 1A and 25°C, it achieves 46 lm/W, delivering 164 lumens. Applications for this LED module include general illumination, architectural lighting, and automotive lighting systems. The component is supplied in trays.
Additional Information
Series: LZ1RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Height | 4.50mm |
| Current - Test | 1A |
| Viewing Angle | 85° |
| Lens Type | Domed |
| Current - Max | 1.2A |
| Lumens/Watt @ Current - Test | 46 lm/W |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 82 (Typ) |
| Light Emitting Surface (LES) | 3.20mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 164lm (146lm ~ 182lm) |
