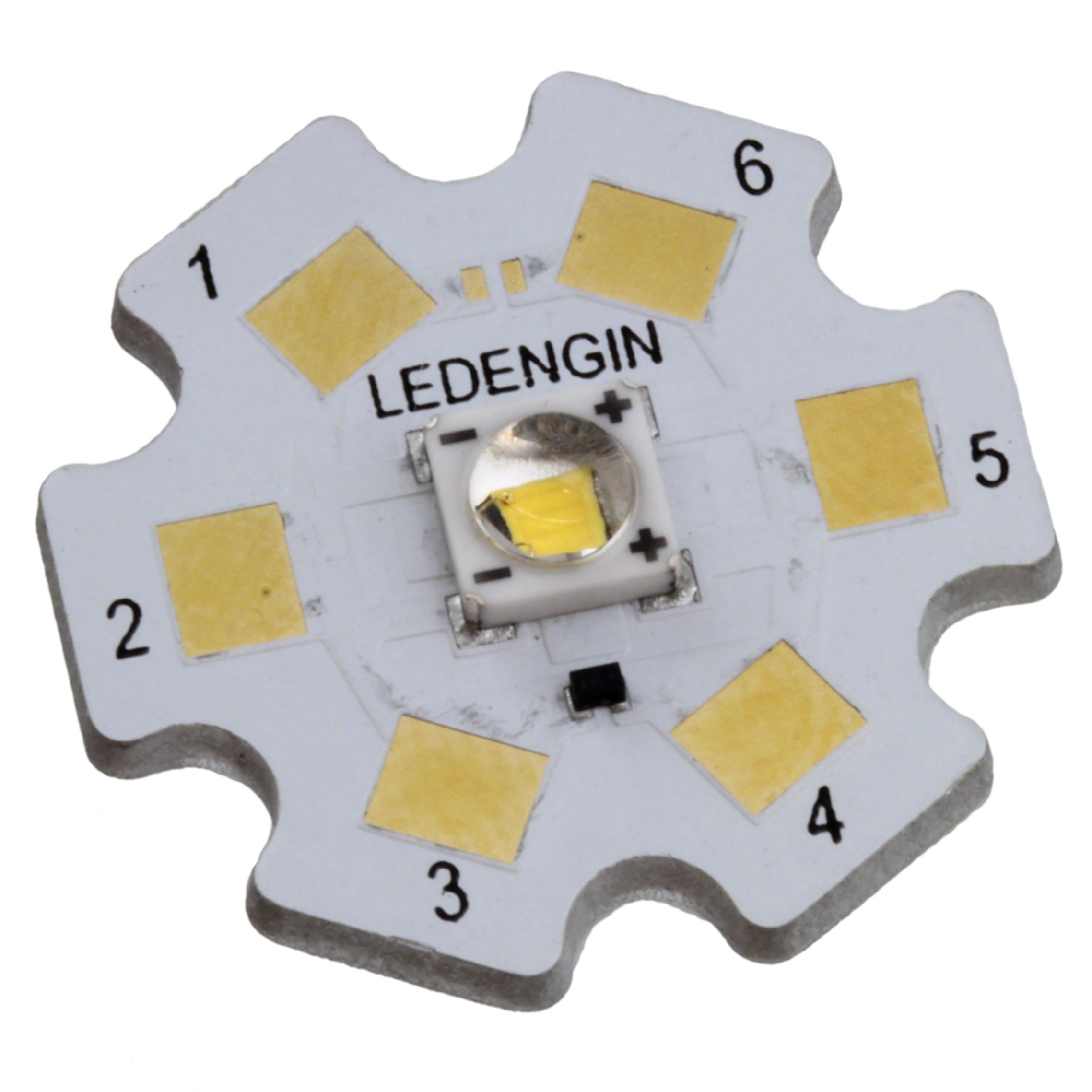

LZ1-10NW00-0040
LED MOD LZ1 WHT STARBOARD 4000KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
ams-OSRAM USA INC. LZ1 Series LED Module, Part Number LZ1-10NW00-0040, offers a neutral white illumination with a correlated color temperature (CCT) of 4000K. This LED module features a 3.20mm diameter Light Emitting Surface (LES) and a domed lens type, providing a 85° viewing angle. Engineered for efficient performance, it delivers typical luminous flux of 216 lumens at 1A test current, with a luminous efficacy of 60 lm/W at 25°C. The module operates with a typical forward voltage of 3.6V and a maximum current rating of 1.2A. Its 82 CRI ensures accurate color rendering. The compact 19.90mm diameter and 4.50mm height make it suitable for various lighting applications, including architectural, industrial, and general illumination. This component is supplied in tray packaging.
Additional Information
Series: LZ1RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Height | 4.50mm |
| Current - Test | 1A |
| Viewing Angle | 85° |
| Lens Type | Domed |
| Current - Max | 1.2A |
| Lumens/Watt @ Current - Test | 60 lm/W |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 82 (Typ) |
| Light Emitting Surface (LES) | 3.20mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 216lm (146lm ~ 285lm) |
