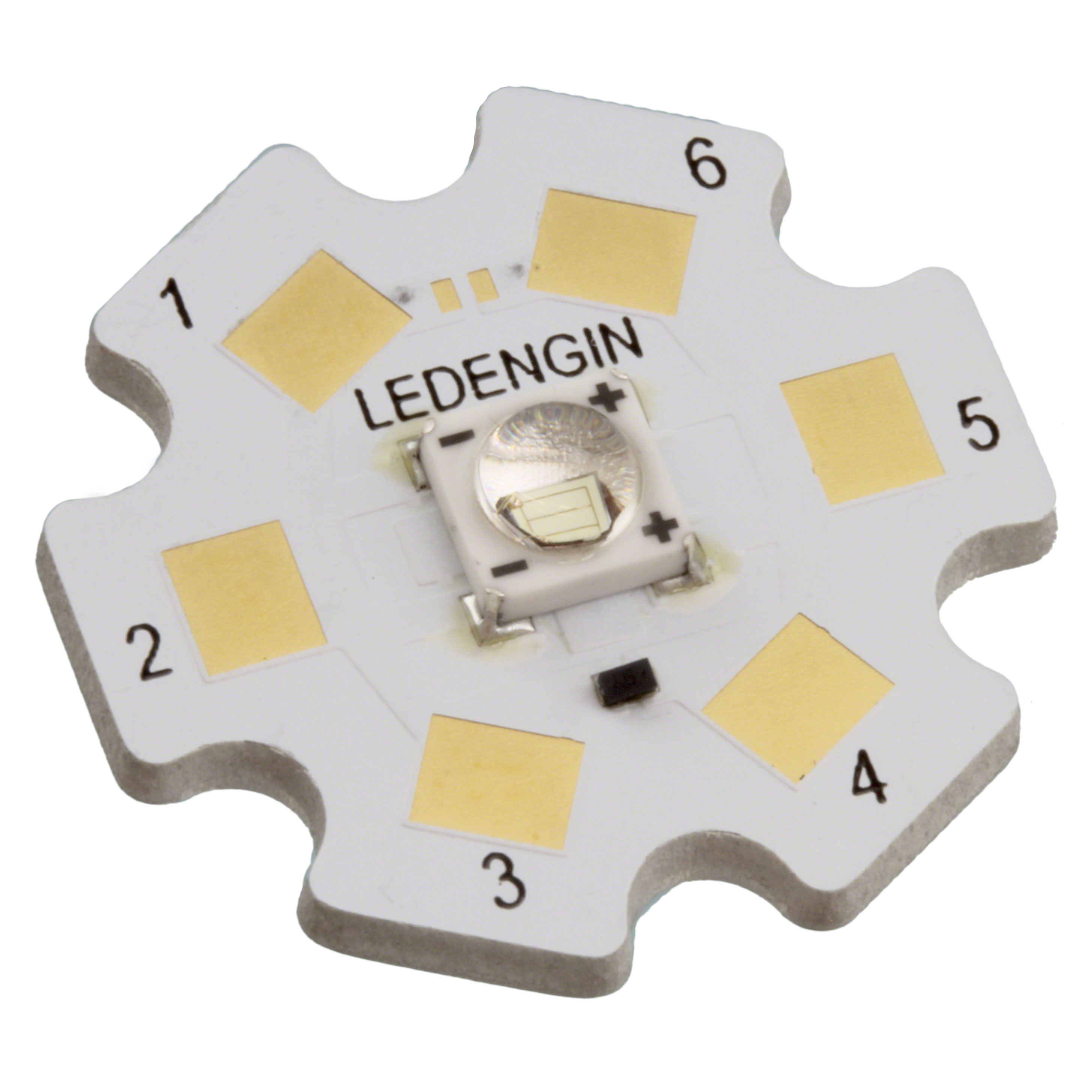

LZ1-10G100-0000
LED MOD LZ1 GREEN STARBOARDManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The ams-OSRAM USA INC. LZ1-10G100-0000 is a green LED module from the LZ1 series, designed for high-performance lighting applications. This Starboard configuration features a 3.20mm diameter Light Emitting Surface (LES) and a domed lens type, providing an 80° viewing angle. Operating with a typical forward voltage of 3.7V, this module achieves 53 lm/W at a test current of 1A, delivering a luminous flux of 200 lumens at 25°C and 1A. The maximum continuous current is rated at 1.2A. Its dimensions are 19.90mm in diameter and 4.50mm in height. This component is suitable for applications in general lighting, architectural lighting, and industrial illumination. The wavelength of the emitted light is 525nm. It is supplied in tray packaging.
Additional Information
Series: LZ1RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | Green |
| Wavelength | 525nm |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 3.7V |
| Height | 4.50mm |
| Current - Test | 1A |
| Viewing Angle | 80° |
| Lens Type | Domed |
| Current - Max | 1.2A |
| Lumens/Watt @ Current - Test | 53 lm/W |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | 3.20mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 200lm (145lm ~ 285lm) |
