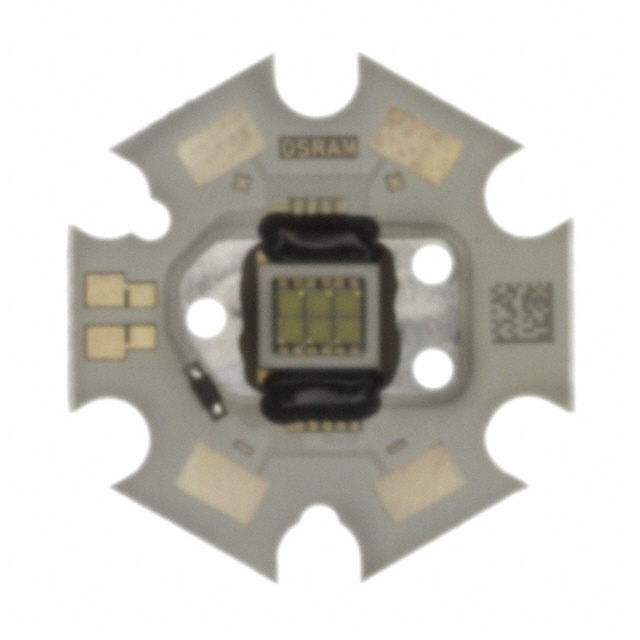

LE W E3A-MZPX-6K8L
LED MOD OSTAR WHT STARBRD 5600KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The ams-OSRAM USA INC. Ostar series LED module, part number LE-W-E3A-MZPX-6K8L, provides a cool white light with a correlated color temperature of 5600K. This component features a 2.11mm x 2.11mm light-emitting surface (LES) and is mounted on a convenient starboard configuration. Designed for robust performance, it operates at a typical forward voltage of 20.8V and can handle a maximum current of 1A, with a test current of 700mA. At 700mA and 25°C, it delivers 380 lumens of luminous flux with a typical efficacy of 26 lm/W. The module offers a broad 120° viewing angle and a CRI of 80, ensuring accurate color rendition. Its compact form factor, with a diameter of 19.90mm and a height of 2.53mm, makes it suitable for various lighting applications, including general illumination and architectural lighting systems. This product is supplied in trays.
Additional Information
Series: OstarRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 20.8V |
| Height | 2.53mm |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | 26 lm/W |
| CCT (K) | 5600K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 2.11mm L x 2.11mm W |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 380lm (240lm ~ 520lm) |
