LE W E2A-LZNY-6K8L
LED MOD OSTAR WHT STARBRD 5600KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

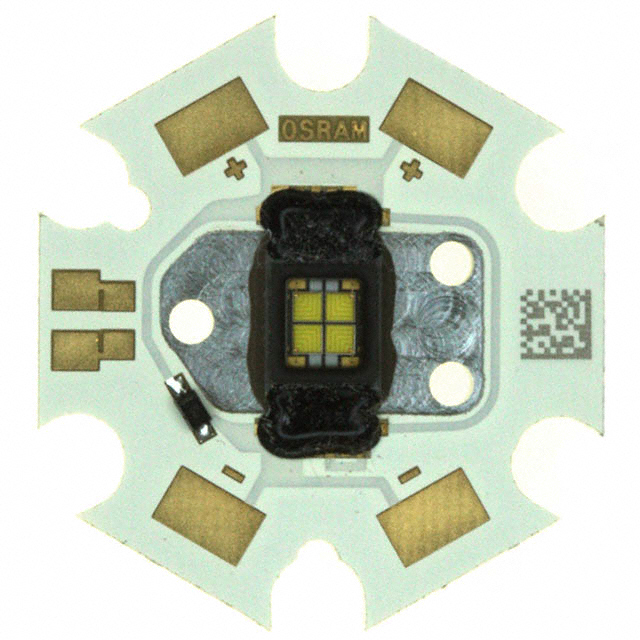

The ams-OSRAM USA INC. Ostar series LED module, part number LE-W-E2A-LZNY-6K8L, offers a cool white light with a Correlated Color Temperature (CCT) of 5600K and a Color Rendering Index (CRI) of 80. This module features a flat lens type and a Light Emitting Surface (LES) of 2.11mm L x 2.11mm W, with an overall diameter of 19.90mm and a height of 2.53mm. Designed for operation with a typical forward voltage of 14V, it can handle a maximum current of 1A, with a tested current of 700mA at 25°C. The 120° viewing angle makes this LED module suitable for applications in general lighting, architectural lighting, and automotive lighting. Packaged in trays, the LE-W-E2A-LZNY-6K8L represents a robust solution for high-performance illumination requirements.
Additional Information
Series: OstarRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 14V |
| Height | 2.53mm |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | 5600K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 2.11mm L x 2.11mm W |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | - |
