LE UW U1A5 05-5Q7Q-EBXD68-T10-HE
LED MOD OSRAM OSTAR WHITEManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
This ams-OSRAM USA INC. OSRAM OSTAR series LED module, part number LE-UW-U1A5-05-5Q7Q-EBXD68-T10-HE, is a white LED module designed for demanding illumination applications. It operates with a typical forward voltage of 3.05V and a maximum current of 1.2A, delivering a typical luminous flux of 855lm at 25°C when tested at 500mA. The module features a compact 20.00mm x 20.00mm footprint with a height of 2.41mm and a flat lens type. Its broad 120° viewing angle makes it suitable for general lighting, automotive, and industrial applications where efficient and uniform light distribution is critical. Supplied in bulk packaging.
Additional Information
Series: OSRAM OSTARRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | White |
| Wavelength | - |
| Size / Dimension | 20.00mm L x 20.00mm W |
| Type | LED Module |
| Configuration | - |
| Voltage - Forward (Vf) (Typ) | 3.05V |
| Height | 2.41mm |
| Current - Test | 500mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1.2A |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 855lm (Typ) |
Request a Quote
Clients Also Buy

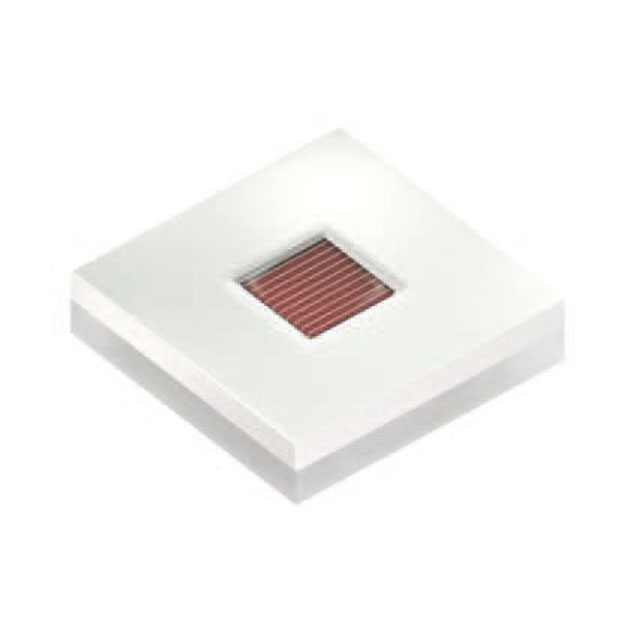

KR CSLNM1.23-8K8L-24
LED OSRAM OSTAR RED 617NM SMD

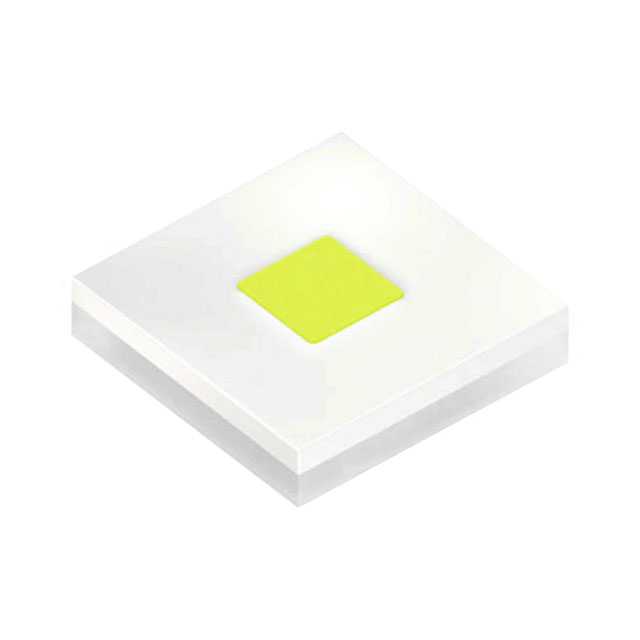

KW CSLNM1.TG-8M7N-EBVF46FCBB46-15B5-S
LED OSTAR WHITE SMD

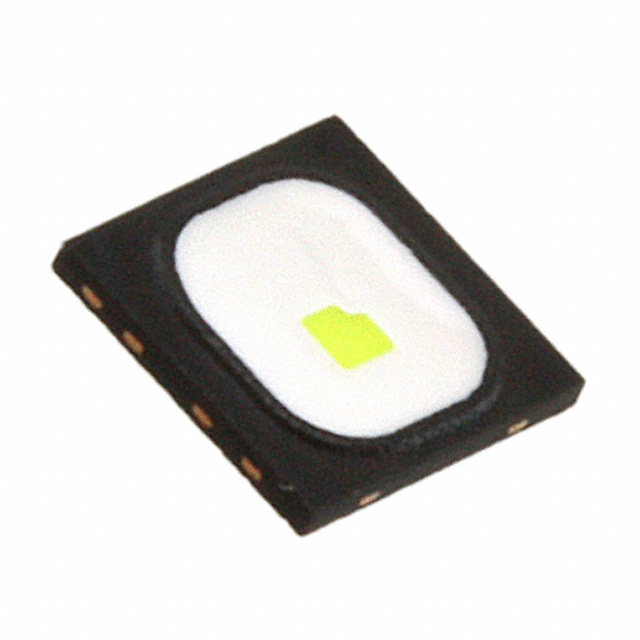

LCG H9RM-LXLZ-1-0-350-R18-Z
