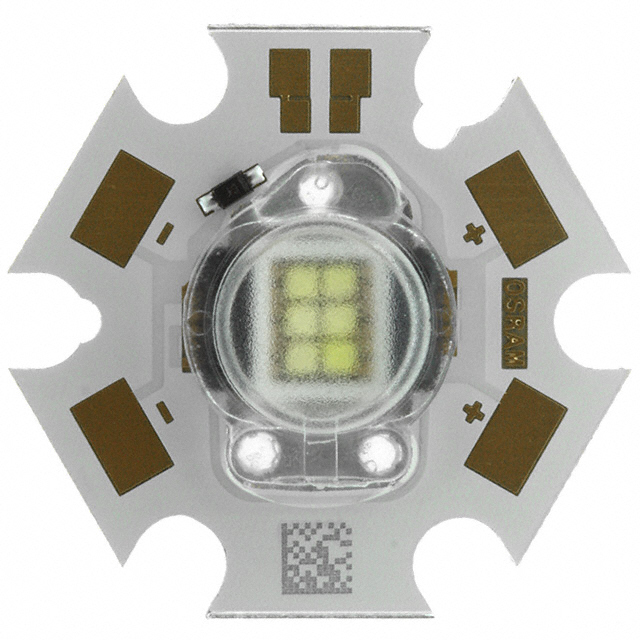

LE UW E3B-PZQZ-4C8F
LED MOD OSTAR WHT STARBRD 6500KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The ams-OSRAM USA INC. Ostar series LE-UW-E3B-PZQZ-4C8F is a high-power LED module designed for demanding illumination applications. This cool white module features a 6500K color temperature and a typical forward voltage of 20.8V at 700mA test current. It delivers a luminous flux of 865lm, with a range of 610lm to 1120lm, and offers a luminous efficacy of 59 lm/W at the test current. The module has a Light Emitting Surface (LES) diameter of 2.00mm and a broad 130° viewing angle. Its compact 19.90mm diameter and 5.25mm height, mounted on a starboard configuration, make it suitable for integration into luminaires for automotive, architectural, and industrial lighting systems. The maximum operating current is 1A. This component is supplied in trays.
Additional Information
Series: OstarRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 20.8V |
| Height | 5.25mm |
| Current - Test | 700mA |
| Viewing Angle | 130° |
| Lens Type | Flat |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | 59 lm/W |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | 2.00mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 865lm (610lm ~ 1120lm) |
