LE CW E3B-NXPY-URVU
LED MOD OSTAR WHT STARBRD 2700KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

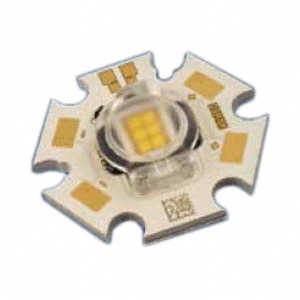

ams-OSRAM USA INC. Ostar series LED module, part number LE-CW-E3B-NXPY-URVU. This warm white LED module features a 2700K CCT and a CRI of 80, delivering 445 lumens at 20.8V typical forward voltage and 700mA test current. Designed with a 2.00mm diameter Light Emitting Surface (LES) and a flat lens, it offers a 130° viewing angle. The module operates with a maximum current of 1A and achieves 31 lm/W at the test current. Dimensions are 19.90mm in diameter and 5.25mm in height. This component is suitable for general lighting applications and is supplied in tray packaging.
Additional Information
Series: OstarRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 20.8V |
| Height | 5.25mm |
| Current - Test | 700mA |
| Viewing Angle | 130° |
| Lens Type | Flat |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | 31 lm/W |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 2.00mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 445lm (280lm ~ 610lm) |
