LE CW E2A-MXNZ-ORPU
LED MOD OSTAR WM WH STARBOARDManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

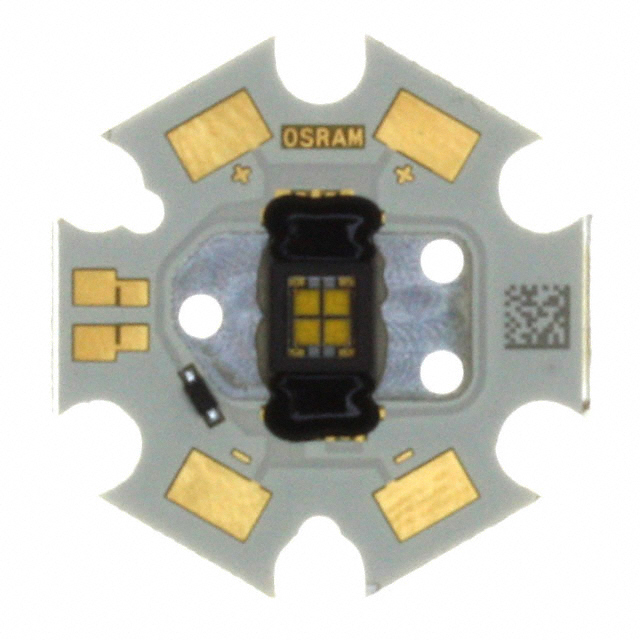

ams-OSRAM USA INC. Ostar series LE-CW-E2A-MXNZ-ORPU is a warm white LED module designed for applications requiring high-quality illumination. This component features a 19.90mm diameter with a 2.53mm height, housing a 2.11mm x 2.11mm Light Emitting Surface (LES). It operates with a typical forward voltage of 14V and can handle a maximum current of 1A, with a test current of 700mA. The module provides a broad 120° viewing angle and a Color Rendering Index (CRI) of 80, making it suitable for various lighting solutions. Its warm white color temperature, coupled with the starboard configuration, lends itself to automotive lighting, general illumination, and architectural lighting applications. Packaged in trays for efficient handling, this LED module from ams-OSRAM USA INC. delivers consistent performance for demanding optical designs.
Additional Information
Series: OstarRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 14V |
| Height | 2.53mm |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | - |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 2.11mm L x 2.11mm W |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | - |
