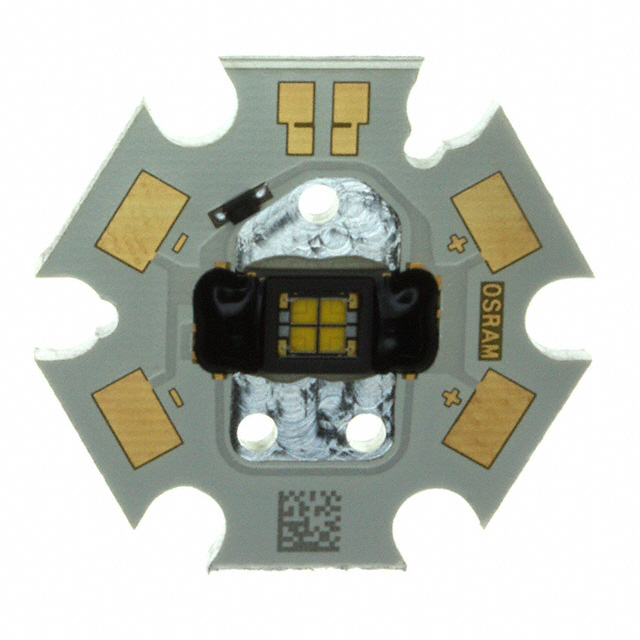

LE CW E2A-MXNZ-MRNU
LED MOD OSTAR WM WH STARBOARDManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
The ams-OSRAM USA INC. Ostar series LE-CW-E2A-MXNZ-MRNU is a high-performance white LED module designed for demanding illumination applications. This module features a warm white color output with a typical CRI of 80, suitable for environments requiring precise color rendering. The Ostar LE-CW-E2A-MXNZ-MRNU operates with a forward voltage of 14V and can handle a maximum continuous current of 1A, with a tested current of 700mA. Its compact design includes a 2.11mm x 2.11mm light-emitting surface (LES) within a 19.90mm diameter footprint, standing at a height of 2.53mm. The module utilizes a flat lens and offers a wide 120° viewing angle for broad light distribution. This component is commonly deployed in automotive lighting, architectural illumination, and general lighting solutions where efficiency and consistent light quality are paramount. The module is supplied in tray packaging.
Additional Information
Series: OstarRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 14V |
| Height | 2.53mm |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | - |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 2.11mm L x 2.11mm W |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | - |
