LE CW E2A-MXNY-QRRU
LED MOD OSTAR WM WH STARBOARDManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

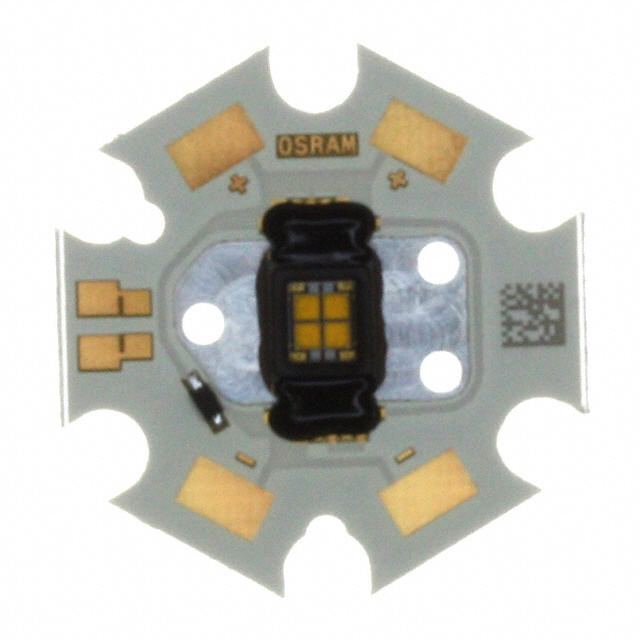

ams-OSRAM USA INC. Ostar series LED Module, part number LE-CW-E2A-MXNY-QRRU, is a warm white COB (Chip-on-Board) LED designed for illumination applications. This module features a flat lens and a 120° viewing angle, providing uniform light distribution. With a typical forward voltage of 14V and a maximum continuous current of 1A, the LE-CW-E2A-MXNY-QRRU is rated for a CRI of 80. The Light Emitting Surface (LES) measures 2.11mm x 2.11mm, and the overall module diameter is 19.90mm with a height of 2.53mm. This component is suitable for use in general lighting, architectural lighting, and automotive lighting systems. It is supplied in trays.
Additional Information
Series: OstarRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 14V |
| Height | 2.53mm |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | - |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 2.11mm L x 2.11mm W |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | - |
