LE CW E2A-LYNX-URVU
LED MOD OSTAR WM WH STARBOARDManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

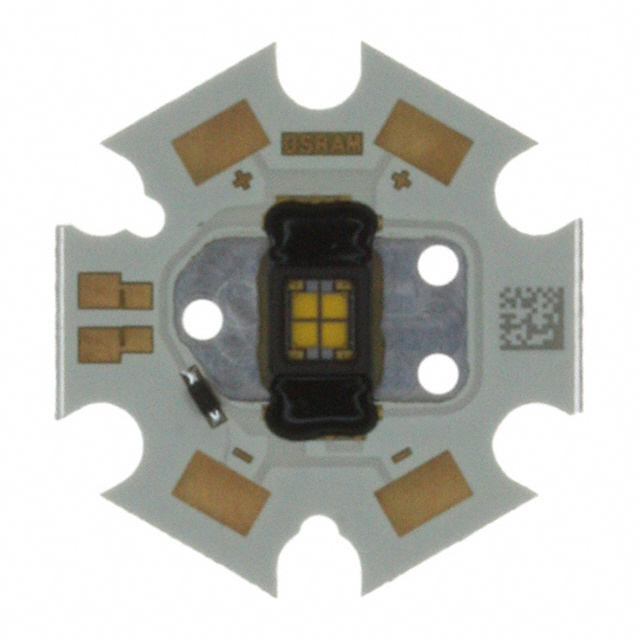

The ams-OSRAM USA INC. Ostar series LE-CW-E2A-LYNX-URVU is a warm white LED module designed for demanding illumination applications. This component features a 19.90mm diameter form factor with a 2.53mm height, housing a 2.11mm x 2.11mm Light Emitting Surface (LES). Operating at a typical forward voltage of 14V and a maximum current of 1A, with a test current of 700mA, this module delivers consistent performance. It boasts a Color Rendering Index (CRI) of 80, ensuring accurate color representation. The Ostar LE-CW-E2A-LYNX-URVU is suitable for use in automotive lighting, general lighting, and architectural illumination systems. The module is supplied in tray packaging.
Additional Information
Series: OstarRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.90mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 14V |
| Height | 2.53mm |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | - |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 2.11mm L x 2.11mm W |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | - |
