LE CG P2A-7U7V-A
LED MOD OSRAM OSTAR GREEN RECTManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

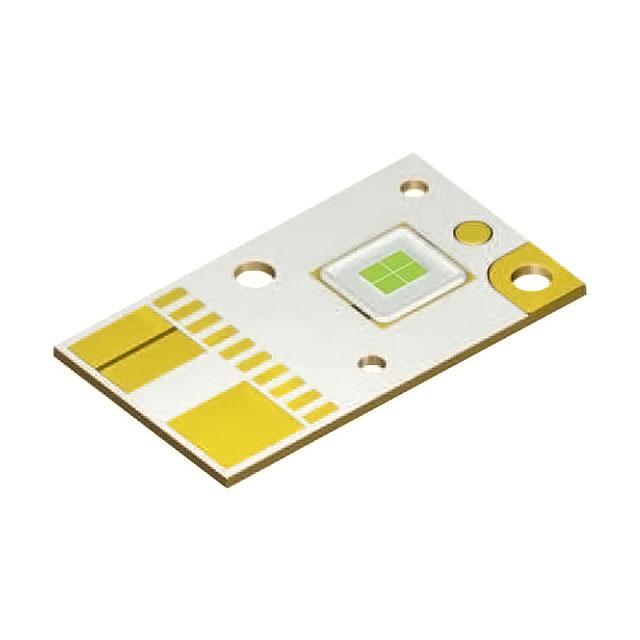

The ams-OSRAM USA INC. OSRAM OSTAR LE-CG-P2A-7U7V-A is a high-performance green LED module engineered for demanding illumination applications. Featuring a rectangle configuration with dimensions of 27.00mm L x 15.50mm W and a height of 1.80mm, this module delivers a typical luminous flux of 7800lm. It operates with a forward voltage of 3.55V (typical) and accepts a test current of 24A, achieving an efficacy of 92 lm/W at this test condition. The 520nm wavelength emission and 120° viewing angle make it suitable for automotive lighting, stage lighting, and general illumination where precise color and broad coverage are essential. Packaged in a tray for efficient handling.
Additional Information
Series: OSRAM OSTARRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | Green |
| Wavelength | 520nm |
| Size / Dimension | 27.00mm L x 15.50mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 3.55V |
| Height | 1.80mm |
| Current - Test | 24A |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 92 lm/W |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 7800lm (Typ) |
