LE CG P1A-6T5U-A
LED MOD OSRAM OSTAR GREEN RECTManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

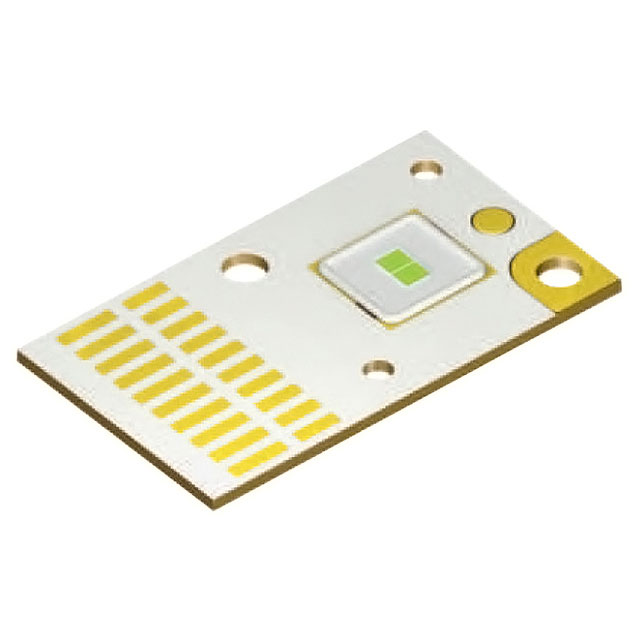

ams-OSRAM USA INC. presents the OSRAM OSTAR series LE-CG-P1A-6T5U-A, a high-performance green LED module. This rectangular module, measuring 27.00mm L x 15.50mm W and 1.80mm in height, is designed for demanding lighting applications. It features a typical luminous flux of 4075lm at a forward voltage of 3.55V and a test current of 12A, achieving an efficacy of 96 lm/W at 25°C. The module utilizes a flat lens type and offers a wide 120° viewing angle. Its specific wavelength output is 520nm. This component is commonly utilized in automotive lighting, industrial illumination, and architectural design. The LE-CG-P1A-6T5U-A is supplied in tray packaging.
Additional Information
Series: OSRAM OSTARRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | Green |
| Wavelength | 520nm |
| Size / Dimension | 27.00mm L x 15.50mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 3.55V |
| Height | 1.80mm |
| Current - Test | 12A |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 96 lm/W |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 4075lm (Typ) |
