LE A P3W 01-TXUX-23

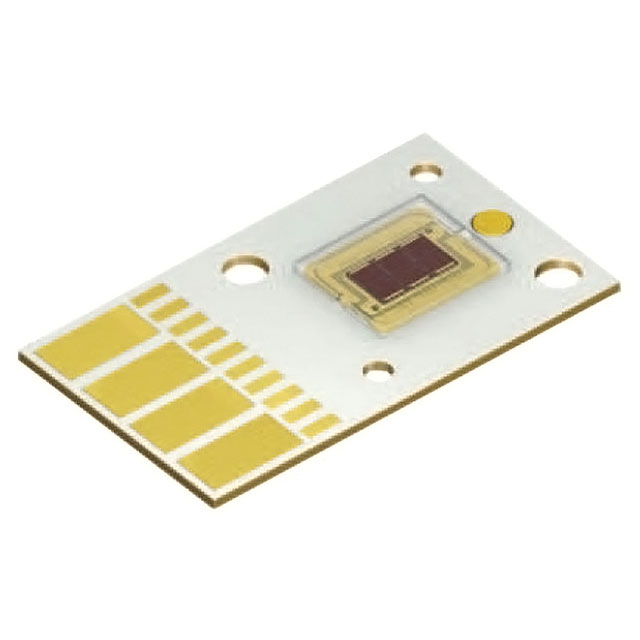

LED MOD OSRAM OSTAR AMBER RECTManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
ams-OSRAM USA INC. OSRAM OSTAR series LED module, part number LE-A-P3W-01-TXUX-23. This amber rectangular LED module delivers a typical luminous flux of 4000lm at 25°C and a forward voltage of 3.35V. It operates with a test current of 36A, achieving 33 lm/W. The module features a flat lens type and a 120° viewing angle. Its dimensions are 27.00mm in length and 15.50mm in width, with a height of 2.10mm. The wavelength is specified at 617nm, with a range of 612nm to 624nm. This component is commonly utilized in general lighting and automotive applications. Packaging is provided in trays.
Additional Information
Series: OSRAM OSTARRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | Amber |
| Wavelength | 617nm (612nm ~ 624nm) |
| Size / Dimension | 27.00mm L x 15.50mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 3.35V |
| Height | 2.10mm |
| Current - Test | 36A |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 33 lm/W |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 4000lm (Typ) |
