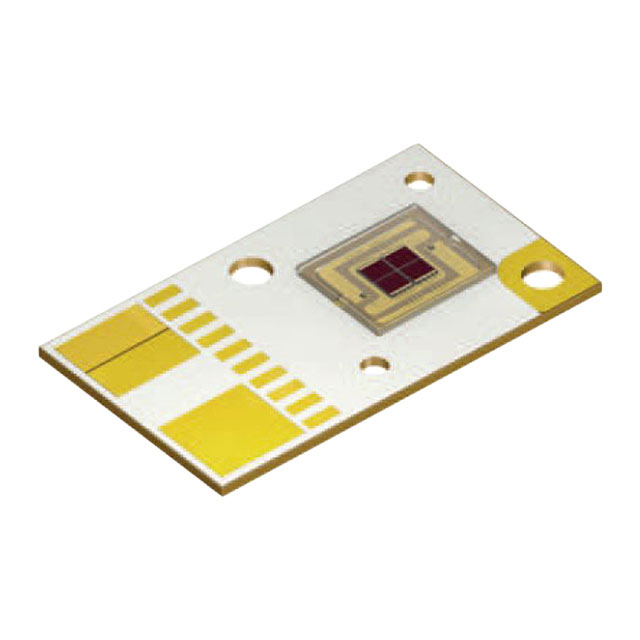

LE A P2W-SYTX-23-0-F00-T01
LED MOD OSRAM OSTAR AMBER RECTManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
ams-OSRAM USA INC. OSRAM OSTAR LED Module, part number LE-A-P2W-SYTX-23-0-F00-T01, offers a high-performance amber illumination solution. This rectangular module features a typical luminous flux of 2600lm at 25°C, driven by a test current of 24A and a forward voltage of 3.35V. The module achieves an efficacy of 32 lm/W at the test conditions, with a peak wavelength of 617nm (612nm to 624nm). The flat lens design provides a wide 120° viewing angle. This component is suitable for applications in automotive lighting, industrial lighting, and stage lighting. The module is supplied in a tray package, with dimensions of 27.00mm in length and 15.50mm in width, and a height of 2.10mm.
Additional Information
Series: OSRAM OSTARRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | Amber |
| Wavelength | 617nm (612nm ~ 624nm) |
| Size / Dimension | 27.00mm L x 15.50mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 3.35V |
| Height | 2.10mm |
| Current - Test | 24A |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 32 lm/W |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 2600lm (Typ) |
