GW MAFJB1.EM-RTSQ-27S3
LED COB SOLERIQ P WHT SQ 2700KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

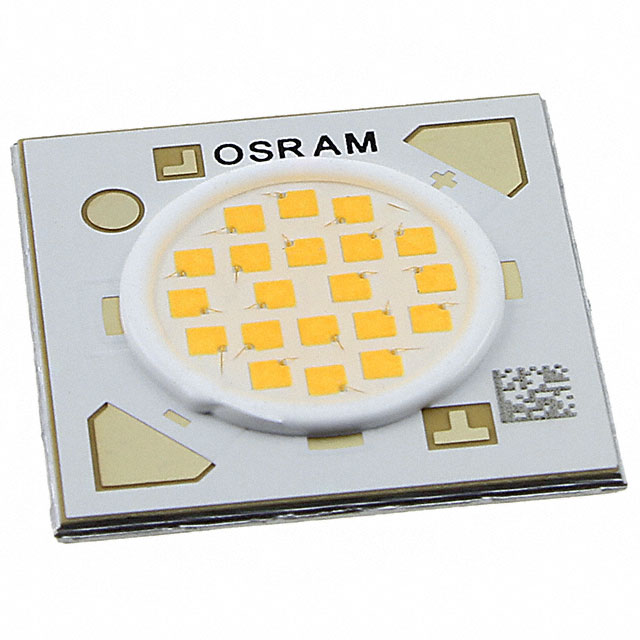

ams-OSRAM USA INC. SOLERIQ® P series GW-MAFJB1-EM-RTSQ-27S3 is a Chip On Board (COB) LED module. This warm white component features a square light-emitting surface (LES) with a 9.00mm diameter and a CCT of 2700K. It offers a nominal luminous flux of 1800 lumens at a test current of 700mA and 29V forward voltage, with a luminous efficacy of 89 lm/W at 85°C. The module has a Color Rendering Index (CRI) of 80. It is designed for a maximum current of 1.4A and has a viewing angle of 120°. The dimensions are 15.00mm L x 15.00mm W with a height of 1.46mm. This component is packaged in a tray and is suitable for general lighting applications.
Additional Information
Series: SOLERIQ® PRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 15.00mm L x 15.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 29V |
| Height | 1.46mm |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1.4A |
| Lumens/Watt @ Current - Test | 89 lm/W |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | 9.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 1800lm (1500lm ~ 2100lm) |
