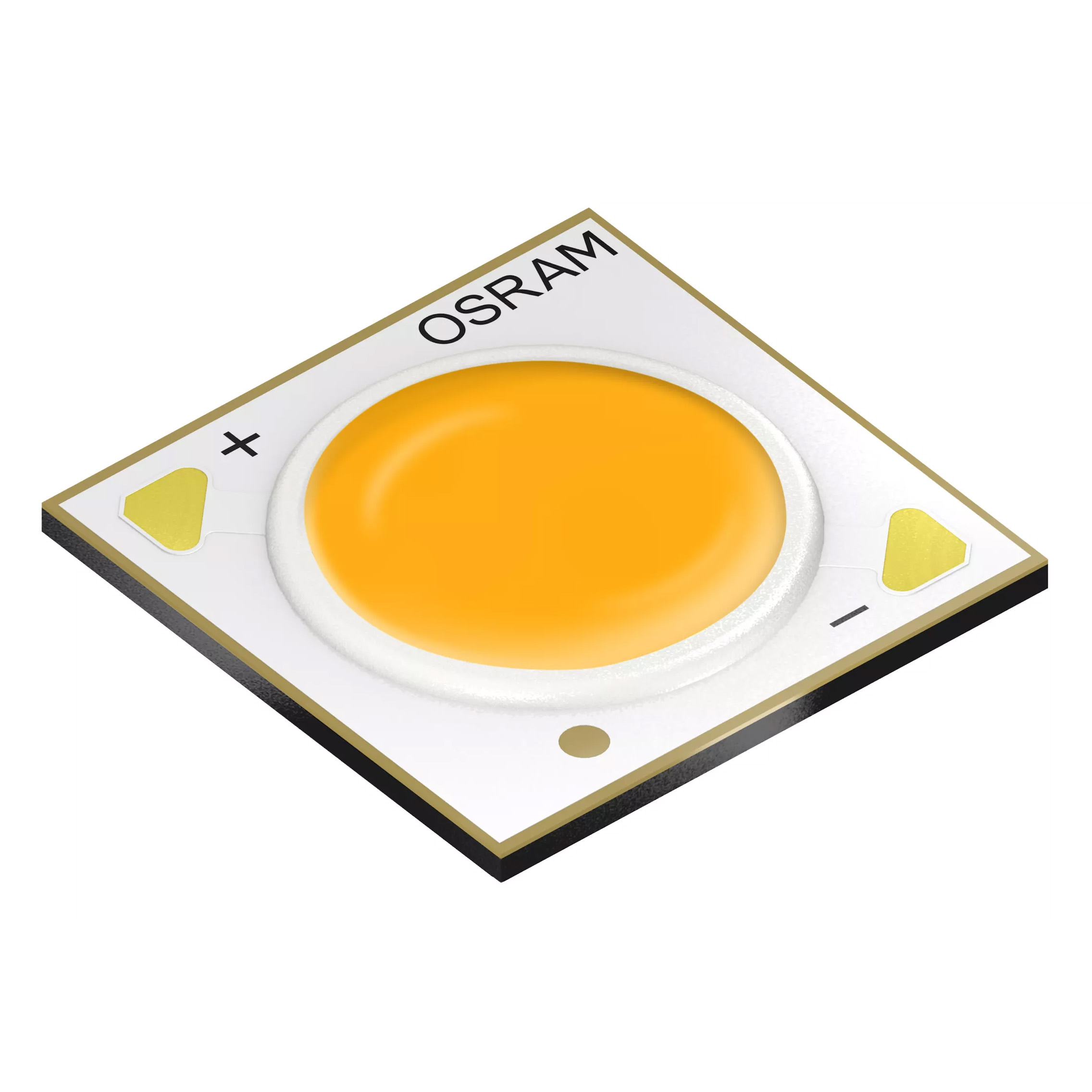

GW KAMJBA.CM-SUTT-50S3-700-T05
GW KAMJBA.CM-SUTT-50S3-700-T05Manufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
LED Lighting COBs Engines Modules Chip On Board (COB) SOLERIQ® S 12 White, Cool Square
Additional Information
Series: SOLERIQ® S 12RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 17.85mm L x 17.85mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 36.5V |
| Height | 1.50mm |
| Current - Test | 700mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1.15A |
| Lumens/Watt @ Current - Test | 133 lm/W |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 12.00mm Dia |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 3390lm (2590lm ~ 4190lm) |
Request a Quote
