GW KAHNB1.CM-TSTU-30S3-T02
LED COB SOLERIQ WHT SQ 3000KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
ams-OSRAM USA INC. SOLERIQ® S 19 Chip On Board (COB) LED, part number GW-KAHNB1-CM-TSTU-30S3-T02, offers a 3000K warm white square light-emitting surface (LES) with a high Color Rendering Index (CRI) of 90. This module is designed for efficient illumination with a typical forward voltage of 44V and a maximum current rating of 1.4A, delivering 88 lm/W at 1.05A test current. It produces a luminous flux of 4045 lumens under test conditions. The compact 24mm x 24mm footprint features a flat lens and a 17.80mm diameter LES, providing a wide 120° viewing angle. This component is suitable for applications in general lighting, architectural lighting, and display backlighting. Supplied in trays.
Additional Information
Series: SOLERIQ® S 19RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 24.00mm L x 24.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 44V |
| Height | 1.40mm |
| Current - Test | 1.05A |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1.4A |
| Lumens/Watt @ Current - Test | 88 lm/W |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 17.80mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 4045lm (3590lm ~ 4500lm) |
Request a Quote
Clients Also Buy

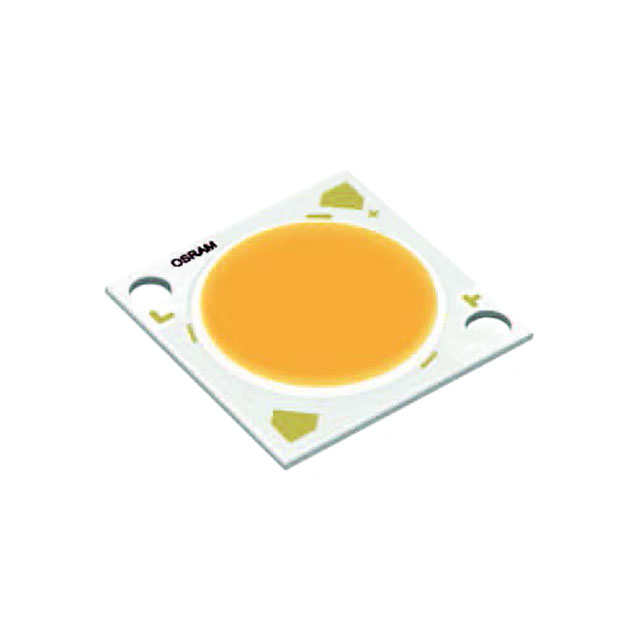

GW KAHJB1.CM-SQSR-27B3-T02
