GW KAGJB3.CM-SPSQ-30S3-T02
LED COB SOLERIQ WHT SQ 3000KManufacturer: ams-OSRAM USA INC.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

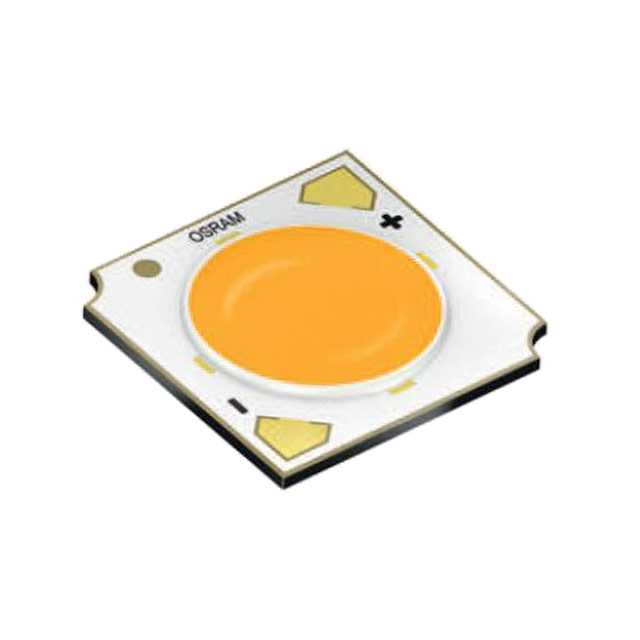

The ams-OSRAM USA INC. SOLERIQ® S 13 GW-KAGJB3-CM-SPSQ-30S3-T02 is a Chip On Board (COB) LED module designed for high-performance lighting applications. This warm white module features a 3000K correlated color temperature and a high Color Rendering Index (CRI) of 90, ensuring accurate color reproduction. The square light-emitting surface (LES) measures 13.00mm in diameter, contributing to a uniform light distribution with a 120° viewing angle. Optimized for efficiency, it delivers 112 lm/W at a test current of 500mA, producing a luminous flux of 1950lm at 85°C and 500mA. The module operates at a typical forward voltage of 34.7V and can handle a maximum current of 1.15A. With dimensions of 19.00mm x 19.00mm and a height of 1.40mm, it is suitable for compact luminaire designs. This component is commonly utilized in architectural lighting, commercial fixtures, and industrial illumination systems. The GW-KAGJB3-CM-SPSQ-30S3-T02 is supplied in trays.
Additional Information
Series: SOLERIQ® S 13RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.00mm L x 19.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 34.7V |
| Height | 1.40mm |
| Current - Test | 500mA |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 1.15A |
| Lumens/Watt @ Current - Test | 112 lm/W |
| CCT (K) | 3000K |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 13.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 1950lm (1800lm ~ 2100lm) |
