CSG14K-1E5M1LA FT SE
CSG14K-1E5M1LA FT SEManufacturer: ams-OSRAM USA INC.
Categories: Image Sensors, Camera
Quality Control: Learn More

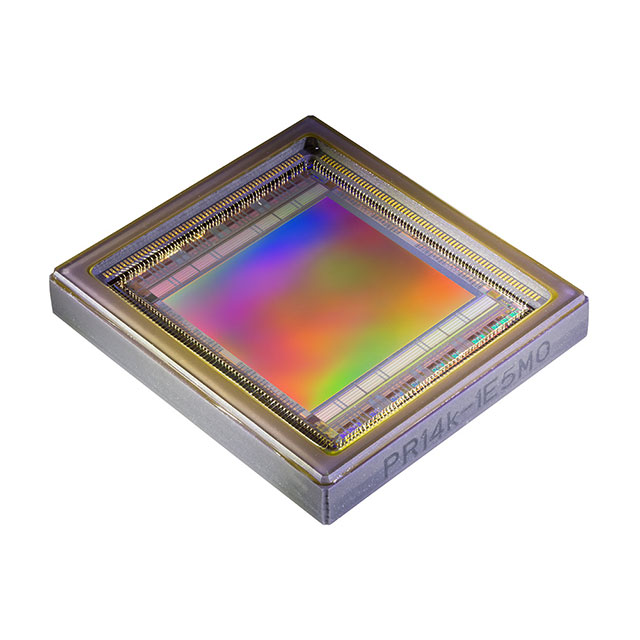

The ams-OSRAM USA INC. CSG14K-1E5M1LA-FT-SE is a high-performance CMOS image sensor featuring an active pixel array of 3856H x 2176V with a pixel size of 3.2µm x 3.2µm. This component delivers exceptional image capture capabilities with a frame rate of up to 140 fps. It operates with a supply voltage range of 1.25V to 1.32V and is housed in a 216-LGA (20x22) package. The operating temperature range for this device is -30°C to 85°C. This image sensor is suitable for demanding applications across industrial automation, medical imaging, and advanced driver-assistance systems (ADAS).
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 216-LGA |
| Type | CMOS |
| Operating Temperature | -30°C ~ 85°C (TJ) |
| Voltage - Supply | 1.25V ~ 1.32V |
| Pixel Size | 3.2µm x 3.2µm |
| Active Pixel Array | 3856H x 2176V |
| Supplier Device Package | 216-LGA (20x22) |
| Frames per Second | 140.0 |
