CMV12000-2E5C1PA
IMAGE SENSORS & COLOR SENSORS ARManufacturer: ams-OSRAM USA INC.
Categories: Image Sensors, Camera
Quality Control: Learn More

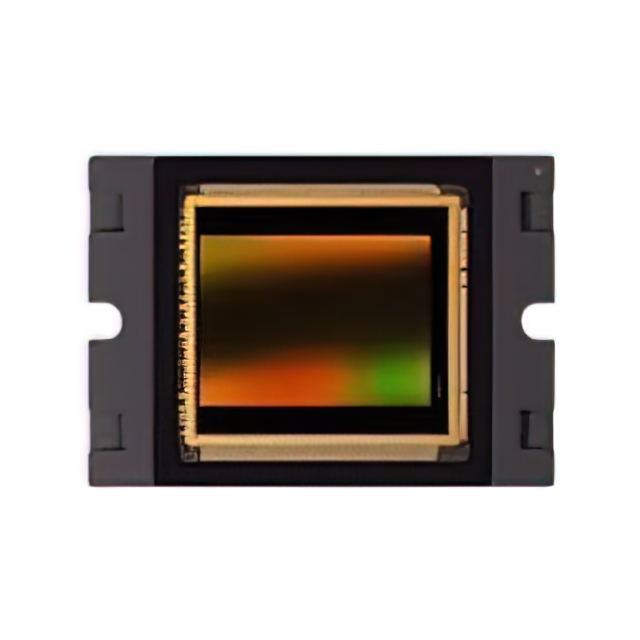

The ams-OSRAM USA INC. CMV12000-2E5C1PA is a high-performance CMOS image sensor featuring a 4096H x 3072V active pixel array with 5.5µm x 5.5µm pixels. This sensor achieves a frame rate of up to 300 frames per second, enabling detailed and rapid image acquisition. Designed for demanding applications, it operates within a temperature range of -30°C to 70°C and supports supply voltages of 1.8V and 3.3V. The sensor is supplied in a 237-MicroPGA package, suitable for advanced imaging systems. Its capabilities make it ideal for use in industrial automation, machine vision, medical imaging, and high-speed surveillance systems where precise and fast image capture is critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | - |
| Type | CMOS |
| Operating Temperature | -30°C ~ 70°C |
| Voltage - Supply | 1.8V, 3.3V |
| Pixel Size | 5.5µm x 5.5µm |
| Active Pixel Array | 4096H x 3072V |
| Supplier Device Package | 237-MicroPGA |
| Frames per Second | 300.0 |
