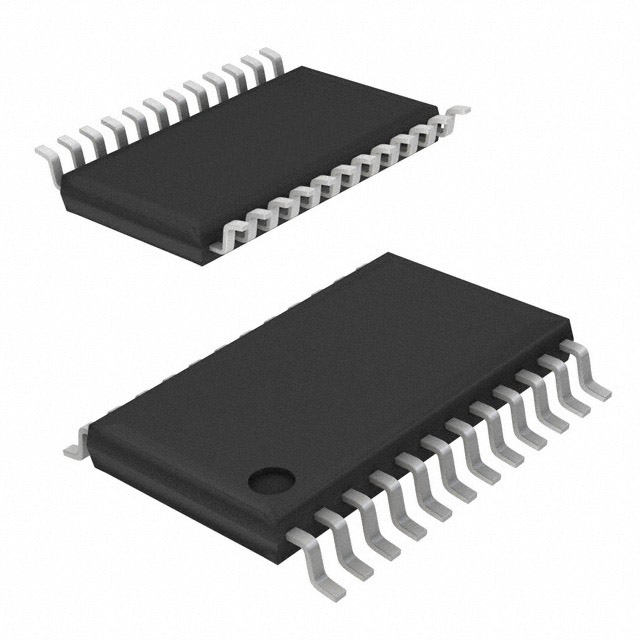

AS1106WE-T
IC DRVR 7 SEGMNT 8 DIGIT 24SOICManufacturer: ams-OSRAM USA INC.
Categories: Display Drivers
Quality Control: Learn More
ams-OSRAM USA INC. AS1106WE-T is an 8-digit LED driver IC featuring a 7-segment display configuration with decimal point support. This device operates from a 2.7V to 5.5V supply voltage and offers a serial interface for streamlined control. The AS1106WE-T is designed for surface mounting within a 24-SOIC package, measuring 7.50mm in width. With a current supply capability of up to 330 mA, it is suitable for high-brightness LED displays. This component finds application in various industries, including industrial automation, consumer electronics, and automotive instrumentation where reliable and efficient segment display driving is crucial. The product is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Display Type | LED |
| Mounting Type | Surface Mount |
| Interface | Serial |
| Configuration | 7 Segment + DP |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 5.5V |
| Digits or Characters | 8 Digits |
| Supplier Device Package | 24-SOIC |
| Current - Supply | 330 mA |
