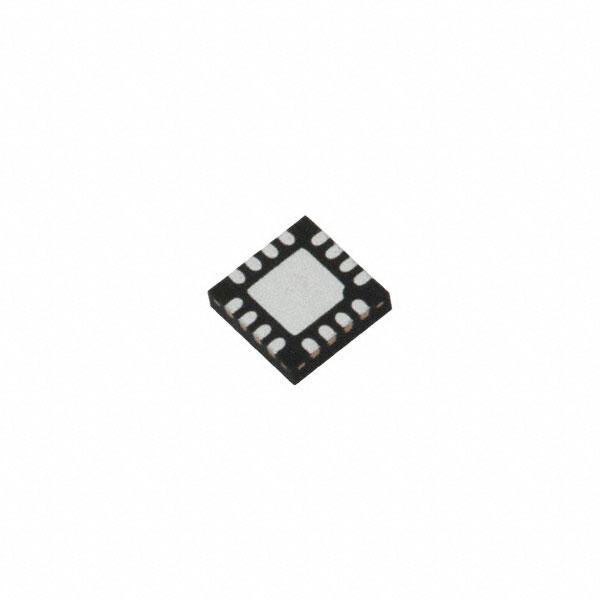

AS1507-BTDT-10
IC DGT POT 10KOHM 256TAP 16TQFNManufacturer: ams-OSRAM USA INC.
Categories: Digital Potentiometers
Quality Control: Learn More
ams-OSRAM USA INC. AS1507-BTDT-10 is a dual-channel digital potentiometer with a nominal resistance of 10k Ohms. This component offers 256 discrete tap positions per channel, enabling fine-grained resistance control. Communication with the device is managed via a serial peripheral interface (SPI). The AS1507-BTDT-10 features non-volatile memory for wiper settings and includes a mute function. It is supplied in a compact 16-TQFN (3x3) surface-mount package, suitable for applications requiring minimal board space. The operating temperature range is -40°C to 85°C, with a typical temperature coefficient of 90ppm/°C. This device finds application in industrial automation, consumer electronics, and medical equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 10k |
| Tolerance | ±25% |
| Features | Mute |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Memory Type | Non-Volatile |
| Interface | SPI |
| Configuration | Potentiometer |
| Operating Temperature | -40°C ~ 85°C |
| Number of Taps | 256 |
| Voltage - Supply | 2.7V ~ 5.5V |
| Taper | Linear |
| Supplier Device Package | 16-TQFN (3x3) |
| Resistance - Wiper (Ohms) (Typ) | 200 |
| Temperature Coefficient (Typ) | 90ppm/°C |
| Number of Circuits | 2 |
| Programmable | Not Verified |
