AS1337A-BTDT
IC REG BOOST ADJ 850MA 8TDFNManufacturer: ams-OSRAM USA INC.
Categories: DC DC Switching Regulators
Quality Control: Learn More

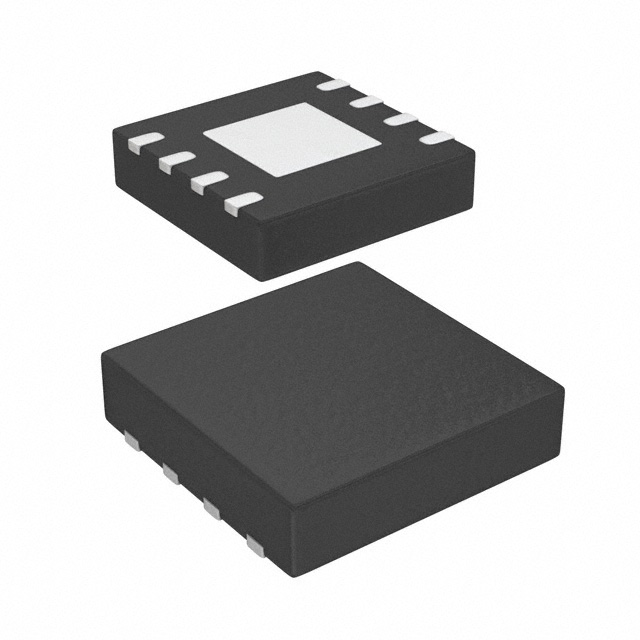

The ams-OSRAM USA INC. AS1337A-BTDT is an adjustable positive output boost switching regulator IC. This component features a 1.2MHz switching frequency and a synchronous rectifier for enhanced efficiency. It is designed for step-up voltage conversion, handling input voltages from 0.65V to 4.5V and providing an adjustable output voltage with a minimum fixed voltage of 2.5V and a maximum of 5V. The AS1337A-BTDT delivers a continuous output current of 850mA at the switch. Housed in an 8-TDFN (3x3) package with an exposed pad, this surface-mount device is supplied on a tape and reel. Its specifications make it suitable for applications in portable electronics and power management systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 850mA (Switch) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1.2MHz |
| Voltage - Input (Max) | 4.5V |
| Topology | Boost |
| Supplier Device Package | 8-TDFN (3x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5V |
| Voltage - Input (Min) | 0.65V |
| Voltage - Output (Min/Fixed) | 2.5V |
