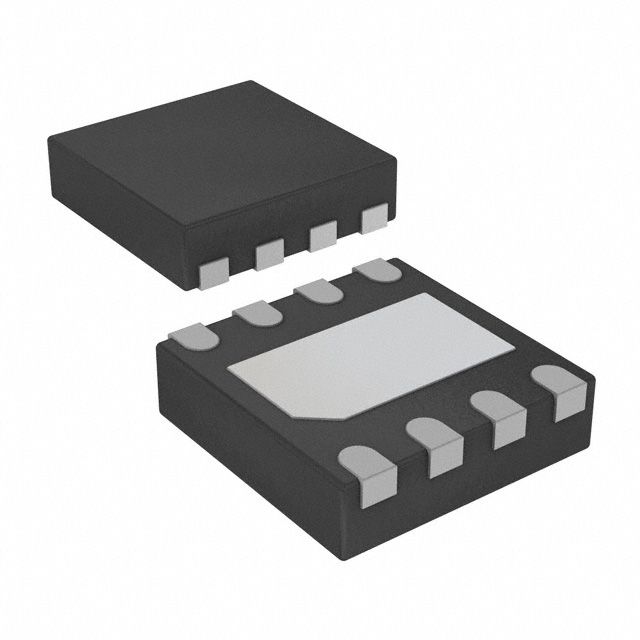

AS1312-BTDT-50
IC REG BOOST 5V 400MA 8TDFNManufacturer: ams-OSRAM USA INC.
Categories: DC DC Switching Regulators
Quality Control: Learn More
Boost Switching Regulator IC Positive Fixed 5V 1 Output 400mA (Switch) 8-UFDFN Exposed Pad
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 400mA (Switch) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | - |
| Voltage - Input (Max) | 5V |
| Topology | Boost |
| Supplier Device Package | 8-TDFN (2x2) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 0.7V |
| Voltage - Output (Min/Fixed) | 5V |
