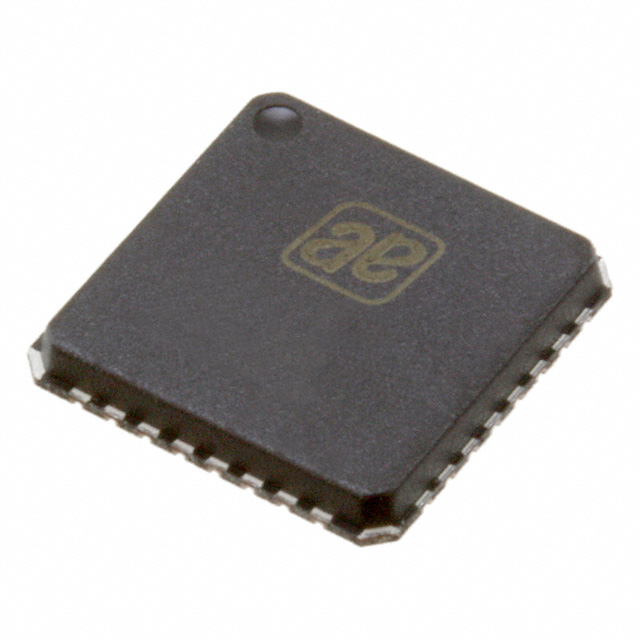

AS5263-HQFM
SENSOR ANGLE 360DEG SMDManufacturer: ams-OSRAM USA INC.
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
The AS5263-HQFM from ams-OSRAM USA INC. is a Hall Effect sensor designed for precise 360-degree angle measurement. This component, packaged in a 32-VQFN exposed pad (32-MLF 7x7), offers continuous angle detection through an external magnet actuator, which is not included. Its output capabilities include analog voltage and PWM signals, making it suitable for applications requiring detailed positional feedback.
Operating within a temperature range of -40°C to 150°C and requiring a supply voltage of 4.5V to 5.5V, the AS5263-HQFM is engineered for surface mounting via its SMD (SMT) tab termination. This device finds application in automotive systems, industrial automation, and consumer electronics where accurate angular positioning is critical. The component is supplied on tape and reel for efficient manufacturing integration.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Analog Voltage, PWM |
| Operating Temperature | -40°C ~ 150°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 4.5V ~ 5.5V |
| Linearity | - |
| Linear Range | - |
| Actuator Type | External Magnet, Not Included |
| Technology | Hall Effect |
| Resistance Tolerance | - |
| For Measuring | Angle |
| Supplier Device Package | 32-MLF (7x7) |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Output Signal | - |
| Programmable | - |
