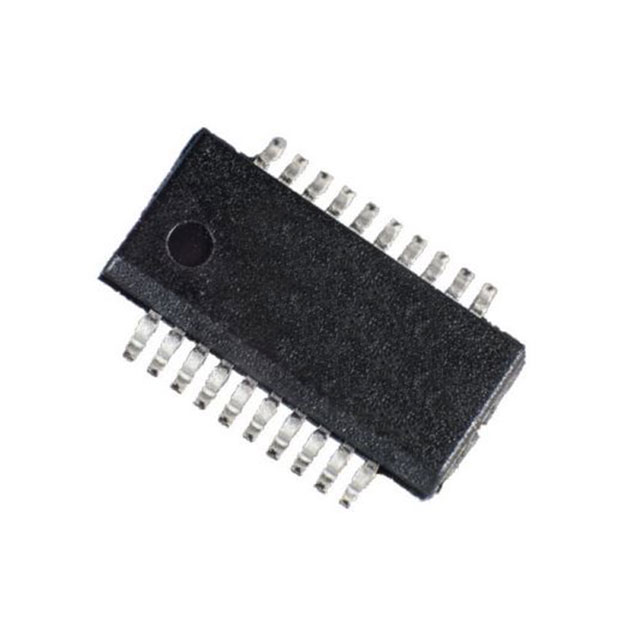

AS89020
IC ADC 12BIT SAR 20SSOPManufacturer: ams-OSRAM USA INC.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The ams-OSRAM USA INC. AS89020 is a 12-bit successive approximation register (SAR) analog-to-digital converter (ADC). This component features four single-ended input channels and a single SAR core, offering a sampling rate of up to 100 kSPS. Data transfer is managed via an SPI interface. Designed for surface mount applications, the AS89020 is housed in a 20-SSOP package. It operates with analog and digital supply voltages ranging from 2.7V to 3.6V and has an operating temperature range of -25°C to 85°C. The internal reference type ensures stable conversion accuracy. This ADC is suitable for applications in industrial automation, consumer electronics, and battery-powered devices.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | SPI |
| Reference Type | Internal |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 4 |
| Supplier Device Package | 20-SSOP |
| Architecture | SAR |
| Number of A/D Converters | 1 |
