AS1541-BQFT
IC ADC 10BIT SAR 16TQFNManufacturer: ams-OSRAM USA INC.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

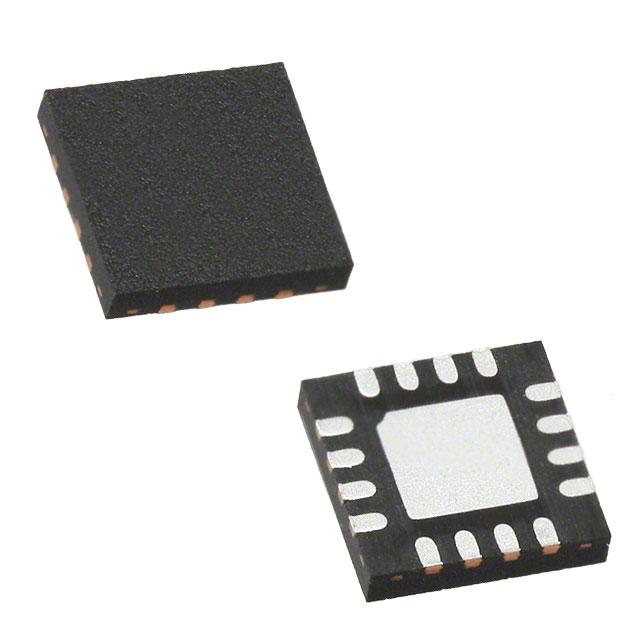

ams-OSRAM USA INC. AS1541-BQFT is a 10-bit successive approximation register (SAR) analog-to-digital converter (ADC). This component features a 4-channel multiplexer with sample-and-hold, supporting both differential and single-ended inputs. The AS1541-BQFT offers an internal reference and an I2C interface with selectable address capabilities. It operates with analog and digital supply voltages ranging from 2.7V to 5.25V and achieves a sampling rate of up to 50kSPS. Packaged in a 16-TQFN (4x4) with an exposed pad, it is suitable for surface mounting. Typical applications include industrial automation, consumer electronics, and medical devices requiring precise analog signal conversion.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Selectable Address |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | MUX-S/H-ADC |
| Data Interface | I2C |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 50k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4 |
| Supplier Device Package | 16-TQFN (4x4) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
