AS1532-T
IC ADC 12BIT SAR 16TSSOPManufacturer: ams-OSRAM USA INC.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The ams-OSRAM USA INC. AS1532-T is a 12-bit successive approximation register (SAR) analog-to-digital converter (ADC) featuring a sampling rate of 400 kSPS. This component offers selectable input configurations supporting up to four single-ended, two pseudo-differential, or two differential inputs. It provides a 1:1 ratio for sample-and-hold to ADC functionality. The AS1532-T communicates via an SPI interface and includes both internal and external reference voltage options. Packaged in a 16-TSSOP, this device operates across a temperature range of -40°C to 85°C with analog and digital supply voltages of 5V. Its capabilities make it suitable for applications in industrial control, sensor signal conditioning, and data acquisition systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 400K |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Number of Inputs | 2, 4 |
| Supplier Device Package | 16-TSSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
Request a Quote
Clients Also Buy
AS1540-BQFT
IC ADC 12BIT SAR 16TQFN
AS1523-T
IC ADC 10BIT SAR 16TSSOP

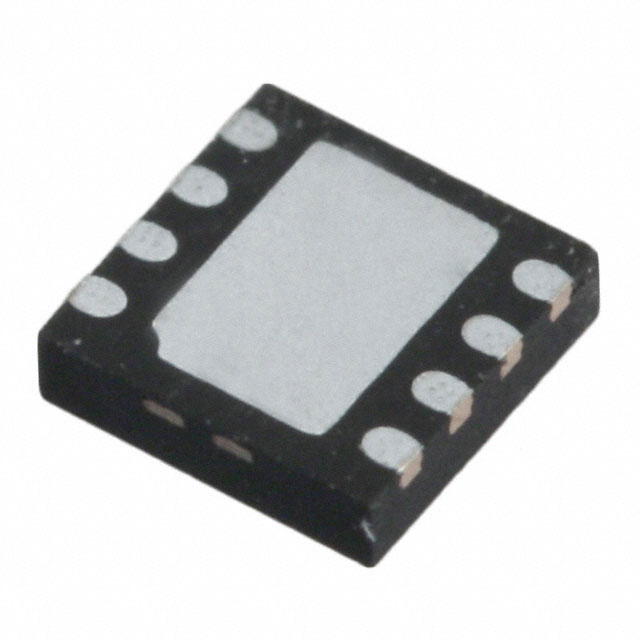

AS1528-BTDR
