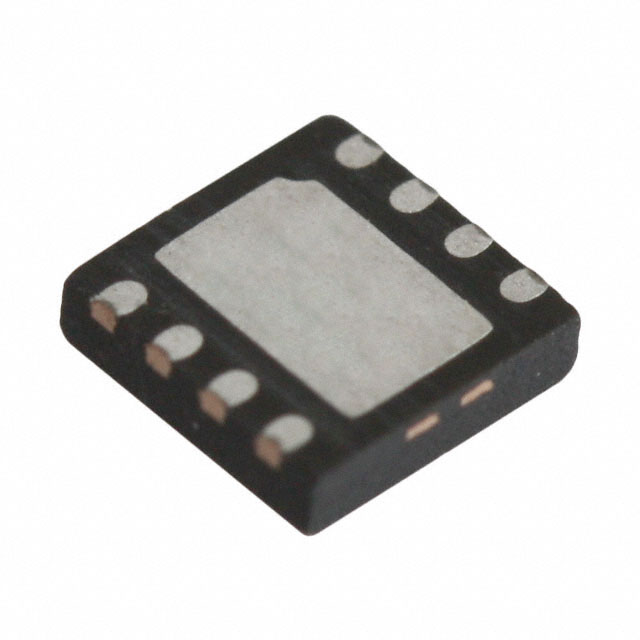

AS1525-BTDR
IC ADC 12BIT SAR 8TDFNManufacturer: ams-OSRAM USA INC.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The ams-OSRAM USA INC. AS1525-BTDR is a 12-bit Analog to Digital Converter featuring a Successive Approximation Register (SAR) architecture. This component offers two single-ended analog inputs and a single SAR converter. Its data interface utilizes SPI, and it operates with analog and digital supply voltages ranging from 2.7V to 5.25V. The AS1525-BTDR is housed in an 8-TDFN (3x3) surface-mount package and supports an external reference. With a sampling rate of 150k samples per second, this device is suitable for applications in industrial automation and consumer electronics. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 8-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 150k |
| Input Type | Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 8-TDFN (3x3) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
