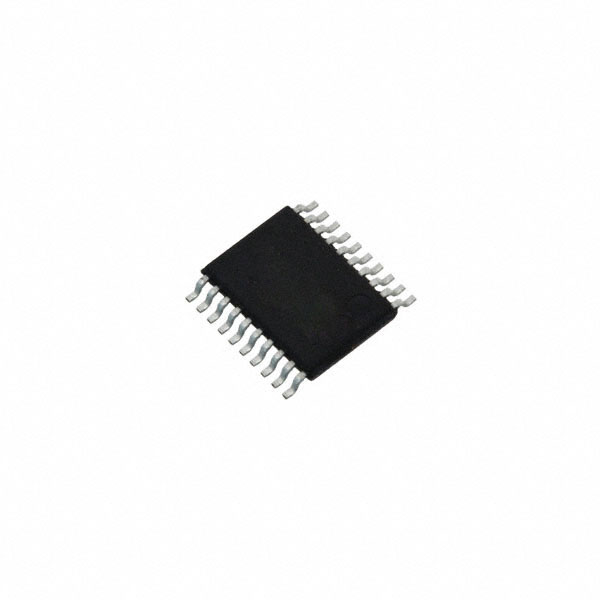

AS1520-T
IC ADC 10BIT SAR 20TSSOPManufacturer: ams-OSRAM USA INC.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The ams-OSRAM USA INC. AS1520-T is a 10-bit Analog-to-Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This component offers a sampling rate of up to 400 kSPS and supports multiple input configurations including differential, pseudo-differential, and single-ended modes with 4 or 8 input channels available. The AS1520-T utilizes an SPI interface for data transfer and provides both external and internal reference options. It is housed in a 20-TSSOP package, suitable for surface mount applications. Operating within a temperature range of -40°C to 85°C, this device is designed for applications requiring precise analog signal conversion in industries such as industrial automation and consumer electronics. The device operates with analog and digital supply voltages of 5V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 400K |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 20-TSSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
