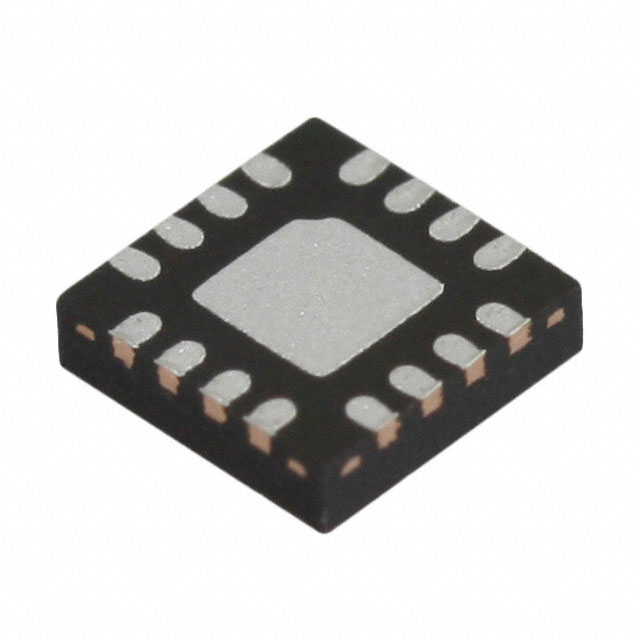

AS1752V-T
IC SW SPST-NCX4 900MOHM 16TQFNManufacturer: ams-OSRAM USA INC.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The ams-OSRAM USA INC. AS1752V-T is a quad SPST-NC analog switch featuring a low on-resistance of 900mOhm. This device supports a single supply voltage range from 1.6V to 3.6V. Each of the four circuits offers a 1:1 multiplexer/demultiplexer configuration. Key performance parameters include a channel capacitance of 45pF (CS(off), CD(off)) and a channel-to-channel matching (?Ron) of 30mOhm. Charge injection is specified at 2pC. The component operates within an ambient temperature range of -40°C to 85°C and is supplied in a 16-TQFN (3x3) package on tape and reel (TR). Typical applications include consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 900mOhm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-TQFN (3x3) |
| Voltage - Supply, Single (V+) | 1.6V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 2pC |
| Crosstalk | -80dB @ 1MHz |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 30mOhm |
| Switch Time (Ton, Toff) (Max) | 22ns, 14ns |
| Channel Capacitance (CS(off), CD(off)) | 45pF, 45pF |
| Current - Leakage (IS(off)) (Max) | 2.5nA |
| Number of Circuits | 4 |
