AS1743G-T-Z
IC SW SPST-NO/NCX2 800MOHM 8MSOPManufacturer: ams-OSRAM USA INC.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The ams-OSRAM USA INC. AS1743G-T-Z is a dual, single-pole, single-throw (SPST) analog switch featuring both normally open (NO) and normally closed (NC) configurations. This device offers a low on-resistance of 800mOhm maximum, with channel-to-channel matching of 20mOhm. Its 1:1 multiplexer/demultiplexer circuit is suitable for applications requiring signal routing and switching. With a -3dB bandwidth of 130MHz, it supports frequencies up to this limit. Other key specifications include a channel capacitance of 35pF, charge injection of 17pC, and crosstalk of -100dB at 1MHz. The leakage current is a maximum of 1nA. It operates from a single supply voltage ranging from 1.6V to 3.6V and is specified for an operating temperature range of -40°C to 85°C. The AS1743G-T-Z is supplied in an 8-MSOP package, delivered on tape and reel. This component is commonly utilized in consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 800mOhm |
| -3db Bandwidth | 130MHz |
| Supplier Device Package | 8-MSOP |
| Voltage - Supply, Single (V+) | 1.6V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 17pC |
| Crosstalk | -100dB @ 1MHz |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 20mOhm |
| Switch Time (Ton, Toff) (Max) | 22ns, 14ns |
| Channel Capacitance (CS(off), CD(off)) | 35pF, 35pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 2 |
Request a Quote
Clients Also Buy

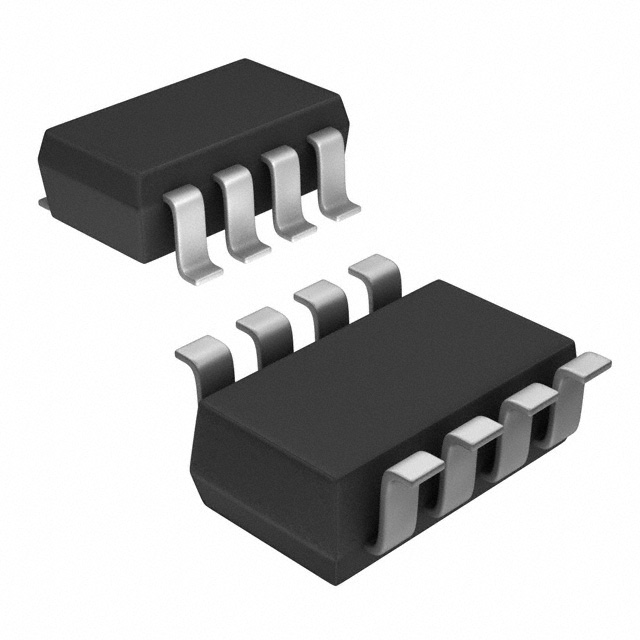

AS1741H-T
