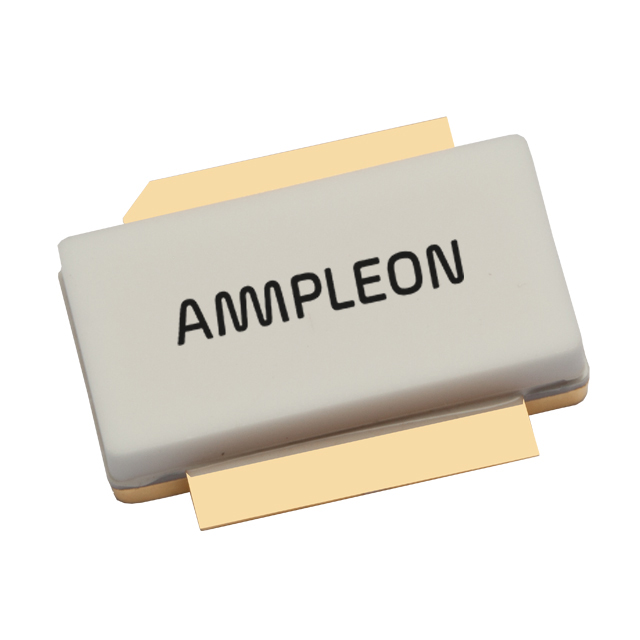

BLS6G2933S-130,112
RF MOSFET LDMOS 32V CDFM2Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLS6G2933S-130-112. This RF power transistor utilizes LDMOS technology, delivering 130W of output power across a 2.9GHz to 3.3GHz frequency range. Designed for demanding applications, it offers a gain of 12.5dB at a test current of 100mA. The device features a rated voltage of 60V and a test voltage of 32V. Packaged in a CDFM2 (SOT-922-1) for chassis mounting, this component is suitable for use in industrial, defense, and public safety communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-922-1 |
| Current Rating (Amps) | 33A |
| Mounting Type | Chassis Mount |
| Frequency | 2.9GHz ~ 3.3GHz |
| Power - Output | 130W |
| Gain | 12.5dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | CDFM2 |
| Voltage - Rated | 60 V |
| Voltage - Test | 32 V |
| Current - Test | 100 mA |
