BLP10H610Z
RF MOSFET LDMOS 50V 12HVSONManufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

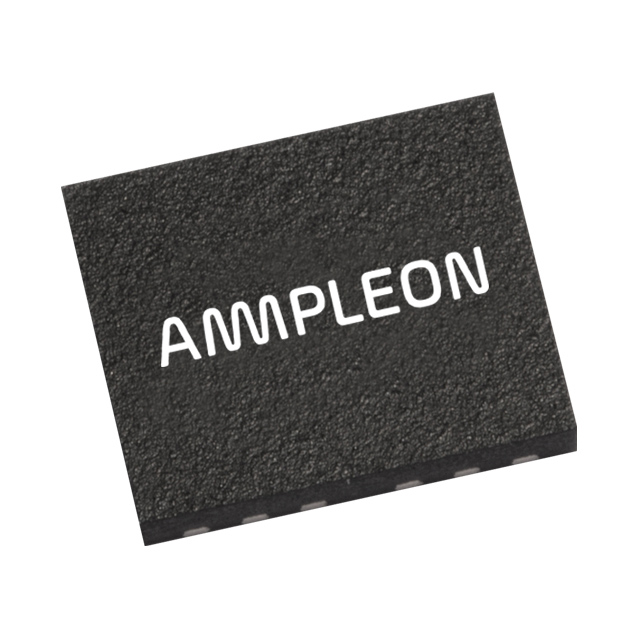

Ampleon USA Inc. presents the BLP10H610Z, an RF LDMOS power transistor. This device is designed for high-frequency applications, operating at 860MHz with a typical gain of 22dB and an output power of 10W. It features a 50V test voltage and a rated voltage of 104V, with a standby current of 60mA. The BLP10H610Z is housed in a 12-HVSON (6x5) package, designed for surface mounting and supplied on tape and reel. Its dual, common source configuration makes it suitable for robust RF power amplification in wireless infrastructure and broadcast applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VDFN Exposed Pad |
| Current Rating (Amps) | - |
| Mounting Type | Surface Mount |
| Frequency | 860MHz |
| Configuration | Dual, Common Source |
| Power - Output | 10W |
| Gain | 22dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | 12-HVSON (6x5) |
| Voltage - Rated | 104 V |
| Voltage - Test | 50 V |
| Current - Test | 60 mA |
