BLP10H603AZ
RF MOSFET LDMOS 50V 12HVSONManufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

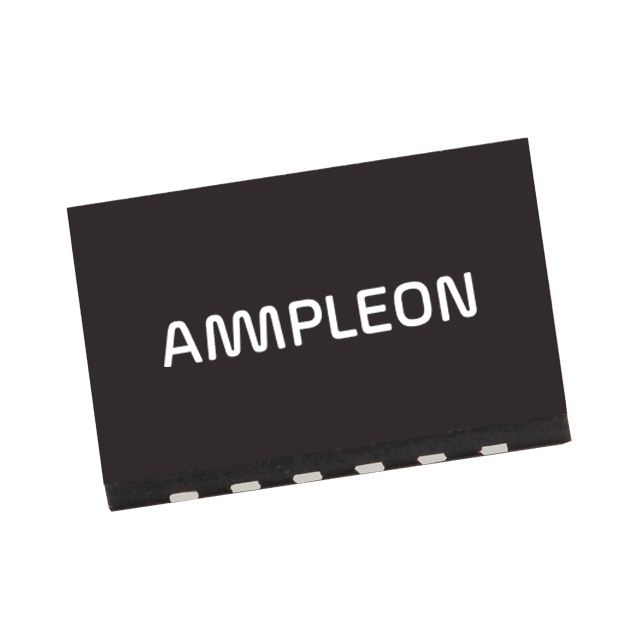

Ampleon USA Inc. BLP10H603AZ is a 50V, 2.5W RF LDMOS power transistor designed for high-frequency applications. This surface-mount device, housed in a 12-HVSON (6x4) package, offers a gain of 22.8dB at 860MHz and a test current of 15mA. Its robust design and performance characteristics make it suitable for use in base station infrastructure, industrial heating, and other high-power RF systems. The BLP10H603AZ is supplied on tape and reel for efficient manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VDFN Exposed Pad |
| Current Rating (Amps) | - |
| Mounting Type | Surface Mount |
| Frequency | 860MHz |
| Power - Output | 2.5W |
| Gain | 22.8dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | 12-HVSON (6x4) |
| Voltage - Rated | 104 V |
| Voltage - Test | 50 V |
| Current - Test | 15 mA |
