BLP05H6150XRY
RF MOSFET LDMOS 50V 4HSOPFManufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

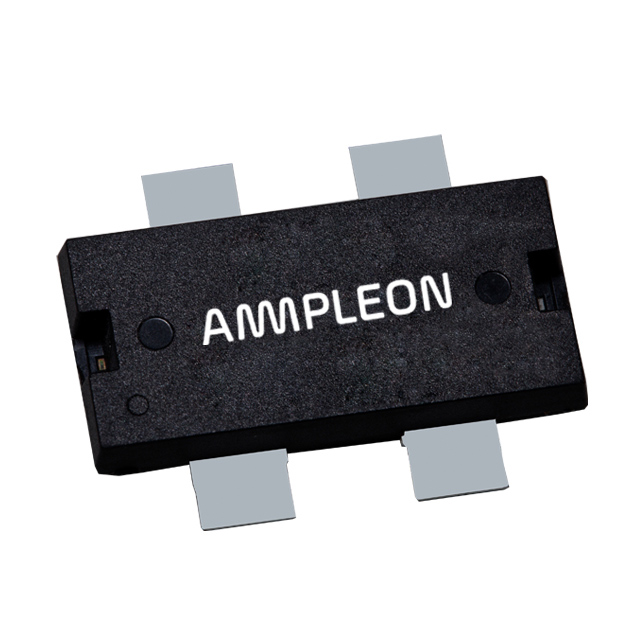

Ampleon USA Inc. BLP05H6150XRY is a High Power RF LDMOS transistor, designed for demanding RF power applications. This device delivers 150W of output power at a test frequency of 108MHz, with a typical gain of 27dB. It operates with a drain-source voltage rating of 135V and features a 50V test voltage. The transistor is housed in a 4-HSOPF package, suitable for surface mount configurations. Its dual, common source configuration is optimized for robust performance in base station infrastructure, broadcast transmission, and industrial heating applications. The BLP05H6150XRY is supplied on tape and reel for efficient automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-1223-2 |
| Current Rating (Amps) | - |
| Mounting Type | Surface Mount |
| Frequency | 108MHz |
| Configuration | Dual, Common Source |
| Power - Output | 150W |
| Gain | 27dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | 4-HSOPF |
| Voltage - Rated | 135 V |
| Voltage - Test | 50 V |
| Current - Test | 100 mA |
