BLL6H1214P2S-250Z
RF MOSFET LDMOS 45V MODULEManufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

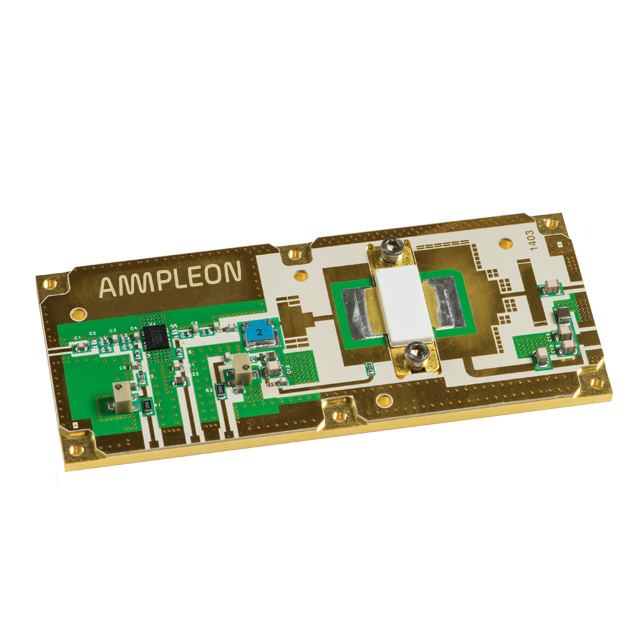

Ampleon USA Inc. BLL6H1214P2S-250Z is an RF LDMOS power transistor module operating from 1.2 GHz to 1.4 GHz. This dual-configuration device delivers a typical gain of 27 dB and a saturated output power of 53 dBm at a test voltage of 45 V and a test current of 200 mA. Engineered with LDMOS technology, it is designed for demanding RF applications requiring high efficiency and power linearity. The module package is supplied in trays. This component is commonly utilized in base station infrastructure and other high-power RF power amplifier designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: Not For New DesignsPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Current Rating (Amps) | - |
| Frequency | 1.2GHz ~ 1.4GHz |
| Configuration | Dual |
| Power - Output | 53dBm |
| Gain | 27dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | Module |
| Voltage - Rated | 50 V |
| Voltage - Test | 45 V |
| Current - Test | 200 mA |
