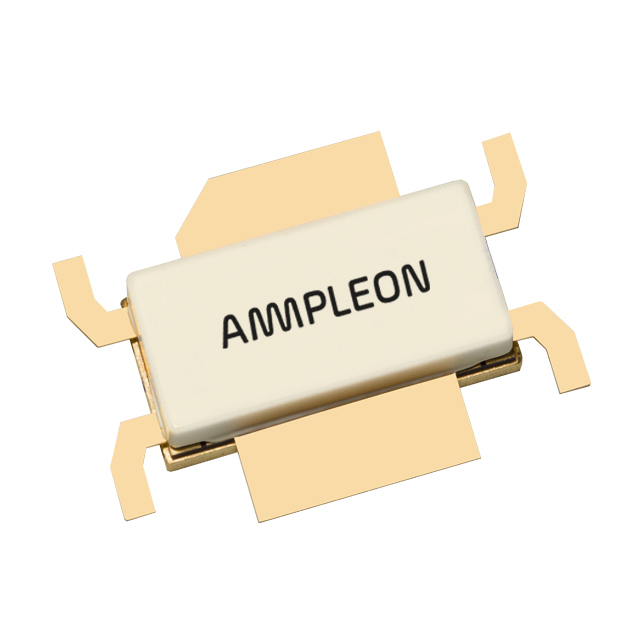

BLF9G20LS-160VJ
RF MOSFET LDMOS 28V LDMOSTManufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLF9G20LS-160VJ is an LDMOS RF power transistor designed for high-frequency applications. This component operates within the 1.81 GHz to 1.88 GHz frequency range, delivering a typical gain of 19.8 dB and an output power of 35.5 W at a test voltage of 28 V. Rated for 65 V, it is engineered for robust performance in demanding environments. The device is supplied in a SOT-1120B package, utilizing LDMOST technology for efficient power amplification. This component finds application in base station infrastructure and other wireless communication systems. The BLF9G20LS-160VJ is provided in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-1120B |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 1.81GHz ~ 1.88GHz |
| Power - Output | 35.5W |
| Gain | 19.8dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | LDMOST |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 800 mA |
