BLF888,112
RF MOSFET LDMOS 50V CDFM2Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

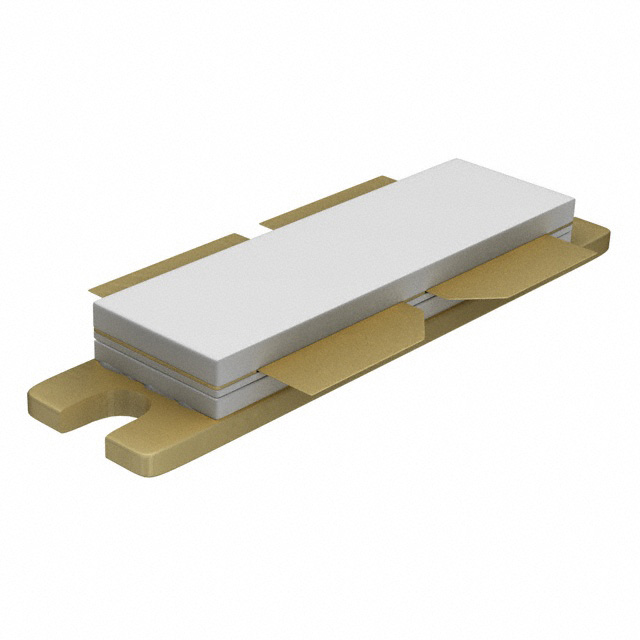

Ampleon USA Inc. BLF888-112 is a 50V LDMOS RF power transistor designed for high-efficiency operation. This component, packaged in a CDFM2 (SOT-979A), delivers 250W of output power at 860MHz with a typical gain of 19dB. The dual, common source configuration and chassis mounting facilitate robust thermal management in demanding applications. Tested at 50V and 1.3A, this device is suitable for base station infrastructure, broadcast transmitters, and other high-power RF applications requiring reliable performance and excellent power efficiency.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-979A |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 860MHz |
| Configuration | Dual, Common Source |
| Power - Output | 250W |
| Gain | 19dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | CDFM2 |
| Voltage - Rated | 104 V |
| Voltage - Test | 50 V |
| Current - Test | 1.3 A |
