BLF861A,112
RF MOSFET LDMOS 32V LDMOSTManufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

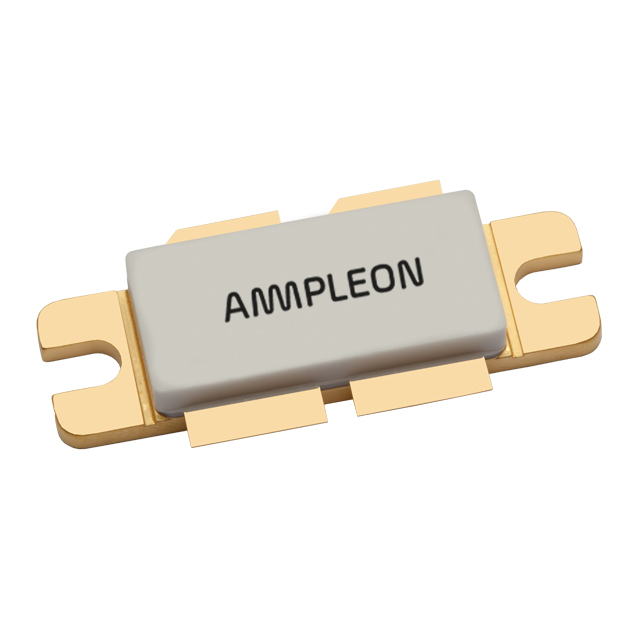

Ampleon USA Inc. BLF861A-112 is a high-performance RF LDMOS transistor designed for demanding applications. This dual, common source device delivers 150W of output power at 860MHz, with a typical gain of 14.5dB. Engineered with LDMOS technology, it operates at a 32V test voltage and is rated for up to 65V. The BLF861A-112 is packaged in a SOT-540A (LDMOST) for chassis mounting, suitable for high-power RF amplifier designs in broadcast, industrial, and communication systems requiring robust performance and efficiency.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-540A |
| Current Rating (Amps) | 18A |
| Mounting Type | Chassis Mount |
| Frequency | 860MHz |
| Configuration | Dual, Common Source |
| Power - Output | 150W |
| Gain | 14.5dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | LDMOST |
| Voltage - Rated | 65 V |
| Voltage - Test | 32 V |
| Current - Test | 1 A |
