BLF7G20L-90P,118
RF MOSFET LDMOS 28V LDMOSTManufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

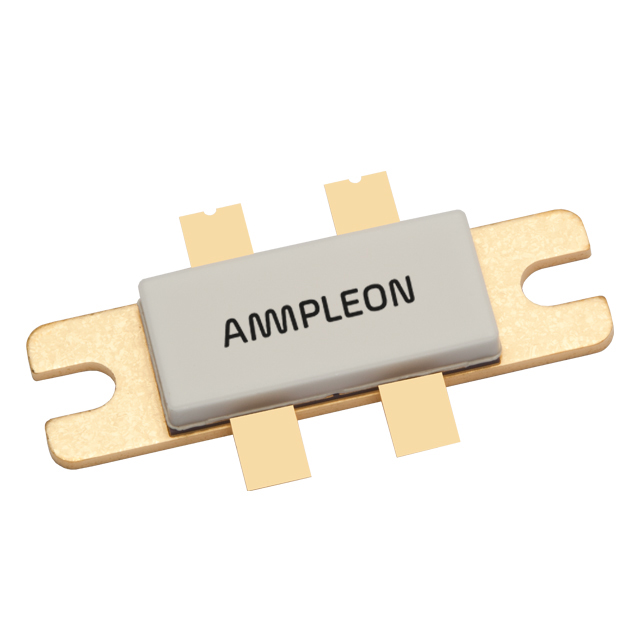

Ampleon USA Inc. BLF7G20L-90P-118 is a 65V LDMOS RF power transistor. This dual, common source device operates within the 1.81GHz to 1.88GHz frequency range, delivering 40W of output power with a typical gain of 19.5dB at 28V and 550mA test conditions. The SOT-1121A package, also known as LDMOST, is designed for chassis mounting and is supplied on tape and reel. This component is commonly utilized in base station infrastructure and other high-frequency power amplification applications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-1121A |
| Current Rating (Amps) | 18A |
| Mounting Type | Chassis Mount |
| Frequency | 1.81GHz ~ 1.88GHz |
| Configuration | Dual, Common Source |
| Power - Output | 40W |
| Gain | 19.5dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | LDMOST |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 550 mA |
