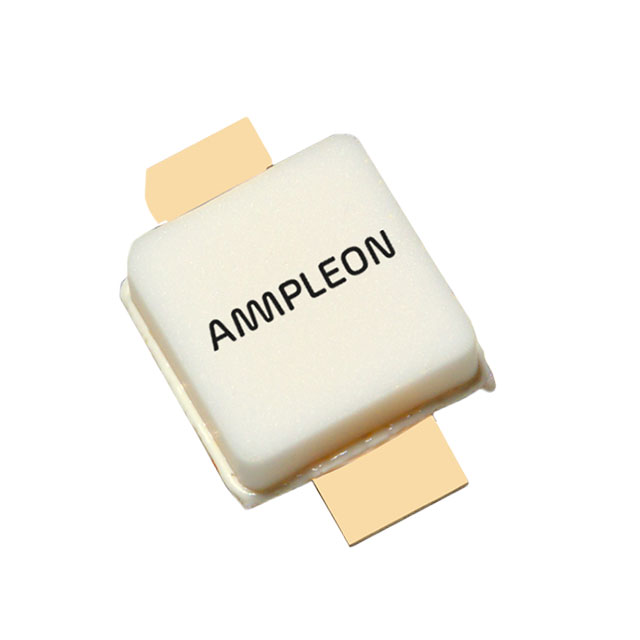

BLF6G38-10,118
RF MOSFET LDMOS 28V CDFM2Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. presents the BLF6G38-10-118, an RF LDMOS transistor designed for high-power applications. This device operates within the 3.4GHz to 3.6GHz frequency range, offering a nominal gain of 14dB and an output power of 2W. It features a 28V test voltage and a 130mA test current, with a robust 65V rated voltage and a 3.1A current rating. The transistor utilizes the CDFM2 package (SOT-975B) for efficient thermal management and is suitable for chassis mounting. This component is commonly employed in industrial, scientific, and medical (ISM) applications, as well as in wireless infrastructure where reliable high-frequency power amplification is critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-975B |
| Current Rating (Amps) | 3.1A |
| Mounting Type | Chassis Mount |
| Frequency | 3.4GHz ~ 3.6GHz |
| Power - Output | 2W |
| Gain | 14dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | CDFM2 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 130 mA |
