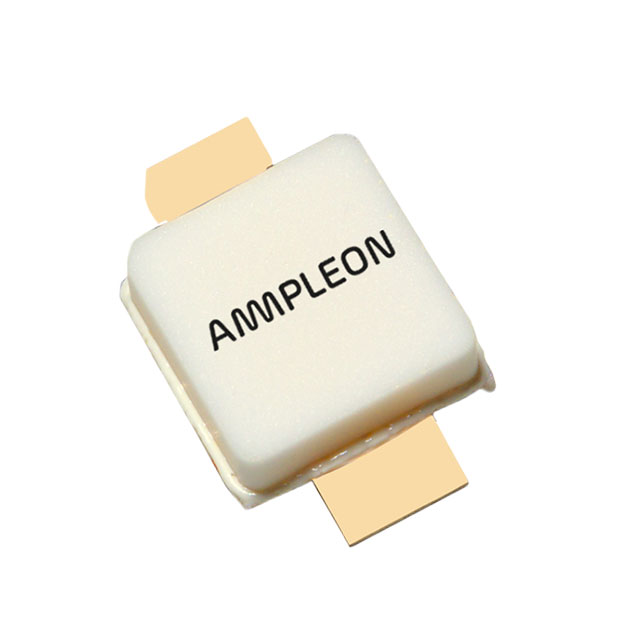

BLF6G38-10,112
RF MOSFET LDMOS 28V CDFM2Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLF6G38-10-112 is a 2W RF power transistor utilizing LDMOS technology. This device operates in the 3.4GHz to 3.6GHz frequency range, delivering a typical gain of 14dB. Designed for demanding applications, it features a 28V test voltage and 130mA test current, with a robust 65V rated voltage. The component is supplied in a CDFM2 package (SOT-975B) for chassis mounting. This RF MOSFET is suitable for use in base station infrastructure, industrial heating, and public mobile radio systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-975B |
| Current Rating (Amps) | 3.1A |
| Mounting Type | Chassis Mount |
| Frequency | 3.4GHz ~ 3.6GHz |
| Power - Output | 2W |
| Gain | 14dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | CDFM2 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 130 mA |
