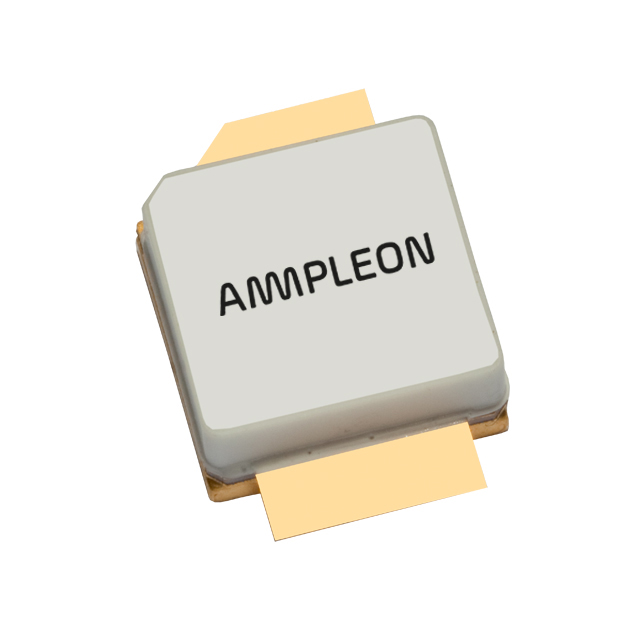

BLF6G27S-45,112
RF MOSFET LDMOS 28V CDFM2Manufacturer: Ampleon USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
Ampleon USA Inc. BLF6G27S-45-112 is a 28V LDMOS RF power transistor. This device is designed for high-power applications within the 2.7 GHz frequency band, delivering 7W of output power with a typical gain of 18dB. The BLF6G27S-45-112 features a robust CDFM2 package, suitable for chassis mounting, and a test current rating of 350 mA. Its 65V breakdown voltage rating ensures reliability in demanding RF power amplifier designs. This component finds application in base station infrastructure, public mobile radio systems, and other high-frequency communication platforms. The part is supplied in tray packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-608B |
| Current Rating (Amps) | 20A |
| Mounting Type | Chassis Mount |
| Frequency | 2.7GHz |
| Power - Output | 7W |
| Gain | 18dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | CDFM2 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 350 mA |
